MIG torch parts are consumable components essential for Metal Inert Gas (MIG) welding, also called Gas Metal Arc Welding (GMAW). These parts include gas nozzles, contact tips, liners, gas diffusers, swan necks, triggers, insulating rings, and clamping pieces. Gas nozzles promote smooth laminar gas flow and heat dissipation. Contact tips provide critical electrical contact and are available in coated versions for extended service life. Liners, such as PTFE or steel variants, guide the wire feed, while swan necks improve access and maneuverability in tight spaces.
Quality MIG torch parts support increased process stability and reduced downtimes, contributing to lower process costs. These components endure exposure to heat, weld spatter, and radiation, ensuring reliable operation in demanding welding environments. By maintaining weld seam integrity and facilitating efficient performance, they help optimize welding outcomes and minimize rework.
MIG torch parts serve as replacement wear parts for semi-automatic, automatic, and robotic welding systems across industries including fabrication, automotive, shipyards, and structural construction. Manufacturing follows rigid standards with spectroscopic verification of raw materials and micro vision-inspection of critical dimensions, detecting variances to .0005 inches. Parts are produced as original components or enhanced designs to match specific torch models, providing compatibility and reliability with attributes such as easy fitting and fast delivery.

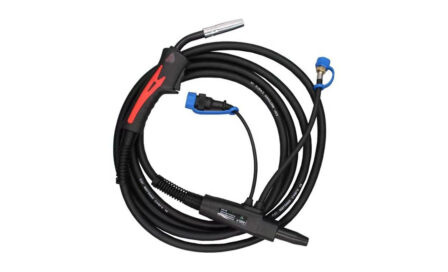

MIG Torch Lead
The MIG torch lead is the flexible cable assembly connecting the welding power source to the torch handle. It carries welding current, shielding gas, and electrode wire from the feeder to the swan neck, enabling stable wire feeding, consistent arc performance, and comfortable torch positioning.

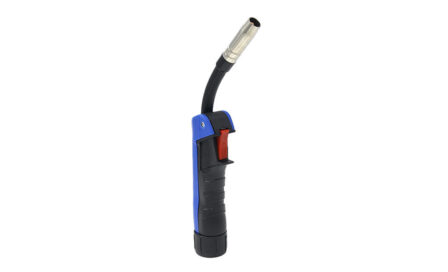

MIG Torch Handle
The MIG torch handle houses the trigger and internal connections, allowing the operator to comfortably control the weld. Its ergonomic shape, grip texture, and integrated strain relief reduce fatigue, improve handling accuracy, and help protect internal cables and connections from mechanical damage.

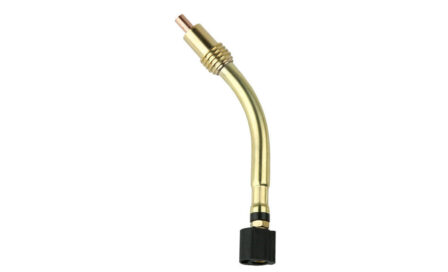

MIG Swan Neck
The MIG swan neck, or conductor tube, connects the handle to the front-end consumables and delivers current, wire, and shielding gas to the weld. Its angled shape improves access to joints, while robust copper or brass construction ensures reliable conductivity, cooling, and mechanical support for the nozzle and tip.

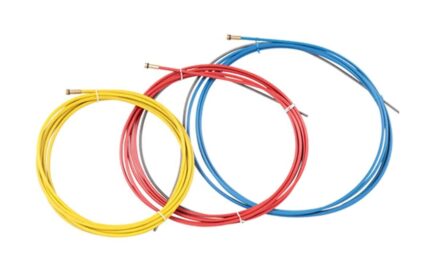

MIG Wire Liner
The MIG wire liner runs inside the torch lead, guiding electrode wire from the feeder to the contact tip. A correctly sized, low-friction liner minimizes feeding resistance, bird-nesting, and burn-back, improving arc stability, reducing downtime, and extending contact tip and drive roll service life.

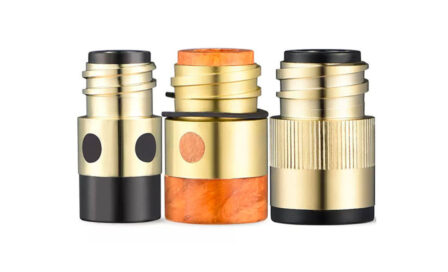

MIG Torch Insulator
The MIG torch insulator electrically isolates live metal parts from the handle and other components, enhancing operator safety and preventing short circuits. It also acts as a thermal barrier, protecting the gun body from excessive heat and extending overall torch service life in tough jobs.

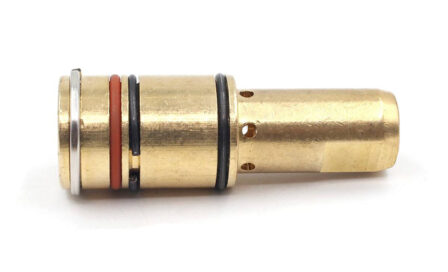

MIG Gas Diffuser
The MIG gas diffuser threads onto the swan neck and distributes shielding gas evenly around the contact tip inside the nozzle. By controlling gas flow and sometimes serving as a tip adapter, it helps create a stable arc, consistent shielding coverage, and cleaner welds with reduced porosity and spatter.

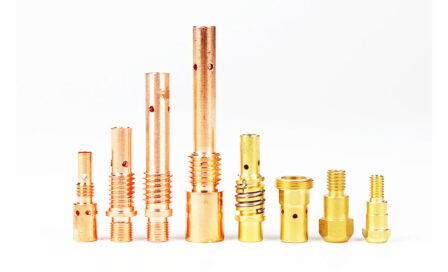

MIG Contact Tip Holder
The MIG contact tip holder, or tip adapter, secures the contact tip to the swan neck or diffuser and provides a solid electrical path. Its threads and seating surfaces keep the tip aligned with the wire path, helping maintain consistent stick-out, stable current transfer, and easy tip replacement during service.

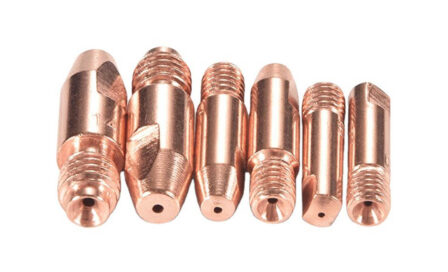

MIG Contact Tip
The MIG contact tip transfers welding current to the electrode wire and guides it precisely into the weld pool. Correct bore size and material selection help ensure stable arc ignition, consistent penetration, and minimal spatter, while timely replacement prevents burn-back, arc wander, and poor bead appearance.

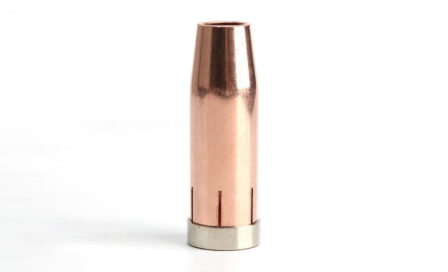

MIG Nozzle
The MIG nozzle, or gas shroud, fits over the diffuser and contact tip to direct shielding gas around the arc and weld pool. Different bore sizes and shapes support various joint types, access needs, and spray or short-arc modes, protecting consumables from spatter and improving weld cleanliness and consistency.

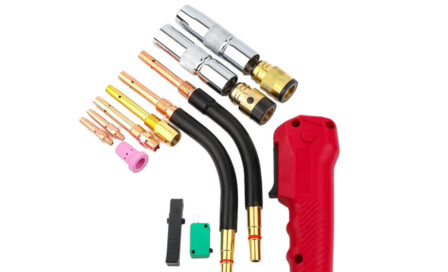

MIG Gun Consumables Kit
A MIG gun consumables kit bundles commonly replaced front-end parts such as contact tips, nozzles, diffusers or tip adapters, and sometimes nozzle adapters. It offers a convenient, cost-effective way to keep essential spares on hand, minimizing downtime and ensuring consistent weld quality across different jobs and wires.
MIG Torch Parts Manufacturer in China
MIG welding is a versatile process preferred for joining metals in all positions. RAX Industrial is a leading integrated manufacturer of welding equipment and consumables. With over 20 years of dedicated expertise, our foundation as an independent domestic manufacturer is built on precision engineering and a commitment to innovation. This focus directly informs the design and production of our MIG contact tips, which are manufactured in our 18,000 m² facility.
We are dedicated to providing innovative and dependable products that meet the highest industry standards. This philosophy ensures our MIG contact tips are precision-engineered from top-grade materials to ensure a reliable and stable connection, enhancing welding performance and providing long-lasting durability for efficient operations. Our substantial capacity, producing over 11 million contact tips annually, is backed by a specialized R&D team, guaranteeing a top-quality product built to withstand rigorous use.
Trust in our high-quality products to deliver exceptional results. Contact us below and someone will reach out to you.
Other Products You May Like
Frequently Asked Questions
What is MIG (GMAW) welding and how does it differ from MAG welding?
Metal Inert Gas (MIG) welding, or Gas Metal Arc Welding (GMAW), uses an electric arc between a consumable wire electrode and the base material, protected by an inert shielding gas like argon or helium, to form the weld.
It is popular due to its cost-efficiency, versatility, and relative ease of learning. The primary difference from MAG (Metal Active Gas) welding is the shielding gas; MAG uses active gases like CO2 or mixes. However, the terms are often used interchangeably for the same equipment and process.
What are the key components and consumables of a MIG torch?
The MIG torch consists of several critical parts, with key consumables being the gas nozzle, contact tip, and gas diffuser due to their proximity to the weld.
- Contact Tip: Conducts electrical current to the wire, creating a stable arc. It is the most critical wear part.
- Nozzle: Directs shielding gas over the weld pool to prevent contamination.
- Gas Diffuser: Ensures even gas distribution and secures the contact tip.
- Liner: Guides the welding wire from the feeder to the contact tip.
- Swan Neck: The curved conduit providing torch flexibility.
- Handle and Trigger Assembly: Provides ergonomic control to initiate gas, wire feed, and the arc.
Additional components include insulating rings, wire guides, clamping pieces, control lines, gas valves, and strain relief assemblies. All parts are exposed to heat, spatter, and wear daily, making their quality vital for process reliability.
How do material quality and design impact MIG torch performance?
High-quality parts use durable materials like copper alloys for superior electrical/thermal conductivity and high-strength alloys for durability.
- Contact Tips: Premium options like silver-plated tips offer better conductivity, heat resistance, and spatter resistance, extending service life and ensuring consistent wire melting.
- Nozzles: Quality nozzles are engineered for smooth, laminar gas flow to provide optimal shielding and prevent defects like porosity. Nozzle profiles (conical, tapered, cylindrical) affect gas flow and spatter protection.
- Liners: Made from steel or PTFE (Teflon), with PTFE used for softer aluminum wire to reduce friction. Liner diameter must match the wire size.
Investing in quality components prevents poor weld seams, torch malfunction, and costly rework, enhancing overall process reliability and reducing operational costs.
What is the difference between air-cooled and water-cooled torch systems?
- Water-Cooled Torches: Use a circulating coolant to handle higher amperages (e.g., 450A) and larger wire diameters (e.g., 1.6mm). This advanced cooling significantly reduces operating temperatures, extending component life.
- Air-Cooled Torches: Rely on air and shielding gas for cooling, typically used for lower amperages (e.g., 290A).
The liners, necks, and other parts are designed specifically for each cooling system and are not interchangeable.
How is compatibility ensured for different welding setups?
Compatibility depends on the torch brand/model (e.g., Binzel, Tweco, Lincoln). Key factors include:
- Connector/Power Pin Type: Must match the machine interface (e.g., Euro, Miller).
- Torch Body Flexibility: Systems with interchangeable necks adapt to diverse welding geometries.
- Hose Pack and Cable Specifications: Must accommodate the necessary media flow and be compatible with the feeder or power source.
- Wire Diameter: Determines the required size of the contact tip, liner, and wire guide.
For optimal performance, use parts engineered for your specific torch model.
What are common maintenance procedures and troubleshooting issues?
Replacement & Cleaning: Consumables like contact tips and nozzles are wear parts and should be replaced when showing excessive wear or spatter buildup.
- Install a New Liner: Disconnect torch, remove old liner, cut new liner to length, feed it through carefully, and secure with clamping nuts.
- Replace Contact Tip & Nozzle: Unscrew old nozzle, remove old tip, insert new tip, and screw nozzle on firmly without over-tightening.
- Clean Nozzle: Remove and use appropriate tools or anti-spatter spray to clean without scratching the interior.
Common Issues & Causes:
- Contact Tip Burn Back: Improper wire feed speed, worn liner, incorrect tip size, or loose connections.
- Erratic Wire Feed: Worn/kinked liner, incorrect liner size, damaged wire guide, or incorrect drive roll tension.
- Poor Gas Coverage/Porous Welds: Damaged/blocked nozzle, faulty o-ring, cracked diffuser, or gas hose issue.
- Excessive Torch Heat: Exceeding duty cycle, clogged nozzle, loose connections, or failed insulating ring.
- Torch Won't Arc: Loose connections (power pin, contact tip), broken trigger cable, or internal damage.
What are the primary industrial and automated applications for MIG welding?
MIG welding is widely used in shipbuilding, heavy fabrication, automotive, transportation, structural construction, and general manufacturing.
Automated Applications:
- Robotic MIG Welding: Uses programmable robots for high precision and consistency, essential in automotive manufacturing.
- Fixed Automation MIG Welding: Features a stationary torch with a moving workpiece, ideal for repetitive, long-seam welding in production lines.
What are RAX Industrial's product and service capabilities?
We are a manufacturer of welding and cutting equipment, founded in 1999, operating from an 18,000 m² facility with over 180 staff and 50+ R&D specialists.
- Product Range: Our catalog includes MIG/MAG, TIG, Plasma Cutting, Robotic, and Stud welding torches and consumables (contact tips, nozzles, liners, diffusers).
- Compatibility: Parts are precision-engineered for major brands including Binzel, Tweco, Lincoln, Bernard, Esab, Panasonic, and Miller.
- Customization (OEM/ODM): We offer private labeling, aesthetic customization, component modification, and free industrial design/prototyping support.
- Quality & Support: We hold ISO 9001:2015, CE, CCC, RoHS, SGS, and TUV certifications. Our technical specialists provide part selection support, and all products carry a 12-month warranty.
- Supply Chain: We maintain an agile supply chain with a standard lead time of 15 days. Our products have been used in 3,000+ projects across 40+ countries.
