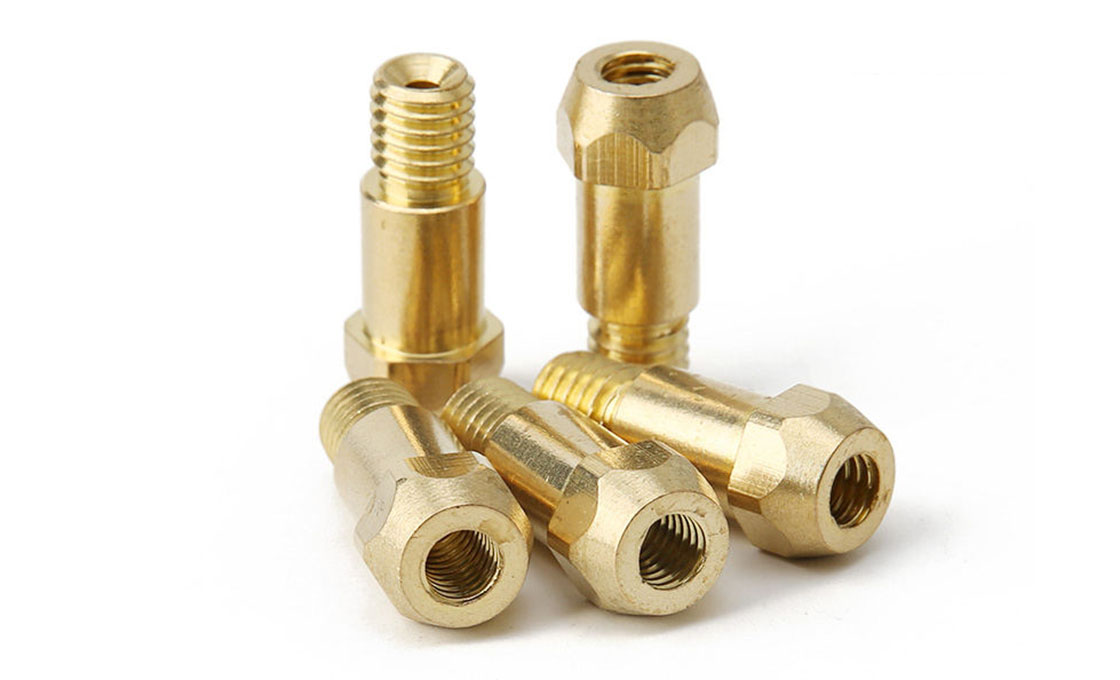

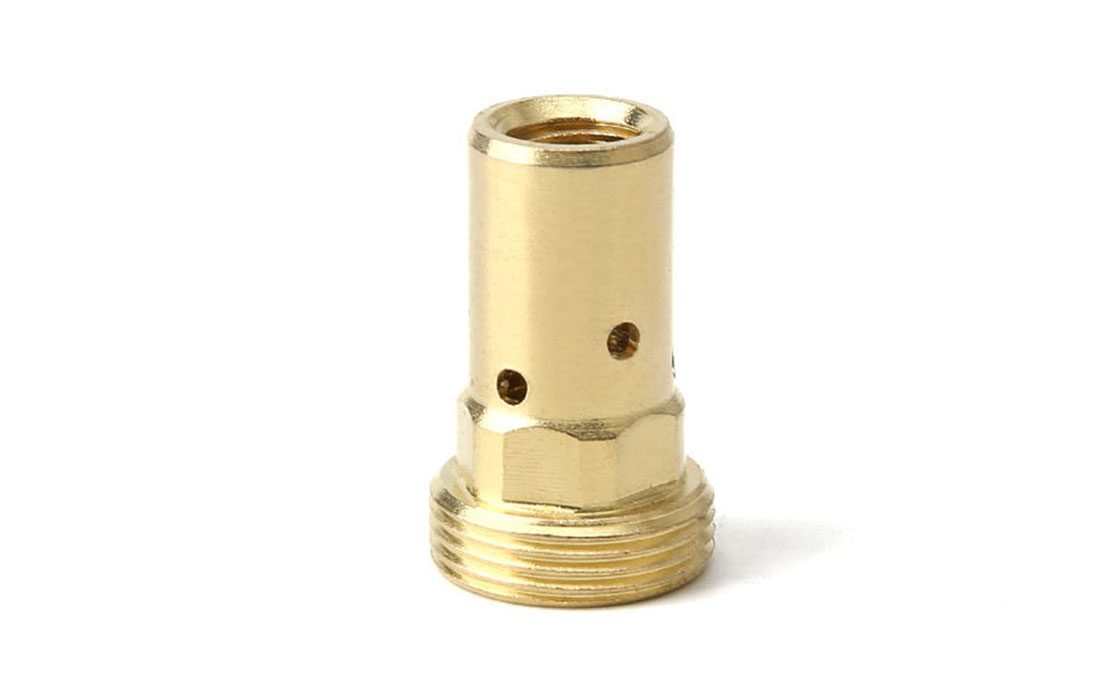

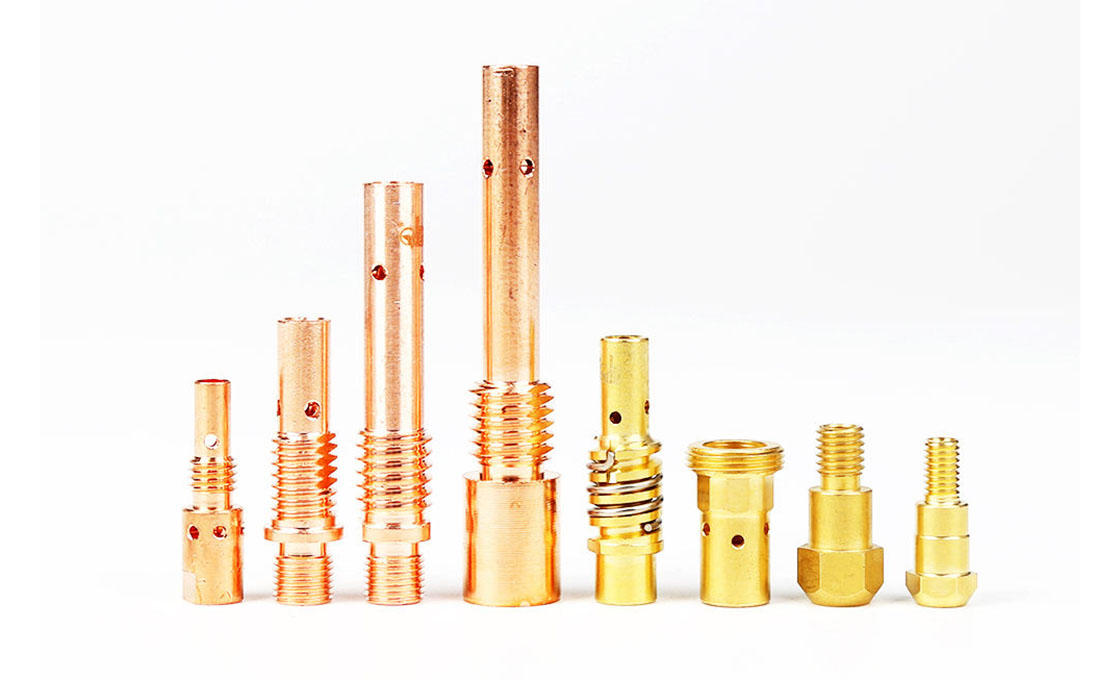

The MIG contact tip holder mounts the contact tip in Metal Inert Gas (MIG)/Metal Active Gas (MAG) welding torches and directly affects welding quality, service life, and uptime. This consumable wear part is used in manual torches and automated robotic systems operating under high process loads.
Construction material determines performance characteristics. Electrolytic copper (E-Cu) provides excellent current transfer and thermal conductivity, while copper-chrome-zirconium (CuCrZr) alloy delivers superior hardness and thermal resistance for high amperage and liquid-cooled applications. These materials enhance abrasion resistance and extend component life with abrasive wires.
Dimensional specifications include standardized M6 and M8 screw threads for cross-brand interchangeability, with lengths ranging from 35mm to 42mm. Thread size and length determine compatibility with specific torch models and duty cycles. The holder fits professional torches from Binzel (MB25AK, MB 36), Trafimet (ErgoPlus 25), and Lincoln (K12 Pro Innershield), supporting applications from general fabrication to shipbuilding and overlay welding.
Available as single units or multi-piece packages with related components like nozzle springs, the holder supports maintenance and inventory requirements. Representative M6 models measure approximately 35mm × 10mm × 10mm, enabling integration into confined torch neck spaces while maintaining structural integrity for secure mounting and electrical conduction.
Trusted for Over 20 Years: MIG Contact Tip Holder Wholesaler
Are you tired of constantly replacing your welding equipment due to wear and tear? For over 20 years, RAX Industrial has been a leading integrated R&D and manufacturing hub, constantly improving and updating our welding products to meet your evolving needs. We are an independent manufacturer, and our expertise is channeled directly into components like our MIG Contact Tip Holder.
This durable and reliable accessory is engineered in our 18,000 m² facility to provide a secure connection between your welding gun and wire feeder. Our team of 50+ R&D specialists ensures the holder’s precision and longevity, with materials and construction verified in our QC lab to withstand the friction, heat, and pressure of welding.
This focus on innovation and rigorous manufacturing, supporting an annual output of over 11 million contact tips, guarantees a product that delivers consistent performance. Contact us to learn more about this product and our entire line of welding equipment and accessories.
| Parameter | Value / Description |
|---|---|
| Product Type | Contact Tip Holder (Consumable Wear Part) |
| Primary Application | MIG/MAG Welding Torches (Manual & Automated/Robotic) |
| Thread Size | M6, M8 (Standardized) |
| Typical Overall Length | 35 – 42 mm |
| Dimensions (L x W x H) | ~35 x 10 x 10 mm (Representative for M6 thread) |
| Core Construction Material | Copper Alloys (e.g., Electrolytic Copper (E-Cu), Copper-Chrome-Zirconium (CuCrZr)) |
| Key Material Properties | High electrical/thermal conductivity (E-Cu); Increased hardness & heat resistance (CuCrZr) |
| Compatible Torch Models (Examples) | Binzel (MB25AK, MB 36 series), Trafimet (ErgoPlus 25), Lincoln (K12 Pro Innershield series) |
| Included Components | Holder & Nozzle Spring |
| Package Type | Single Unit / Multi-piece Set |
Frequently Asked Questions
What is a MIG contact tip holder and why is it critical for weld quality?
The contact tip holder is a consumable component that securely positions the contact tip within your welding torch, providing stable connection between the gun and wire feeder. This precise positioning delivers several performance advantages:
- Consistent Current Transfer: Optimal electrical performance throughout the welding process
- Arc Stability: Minimized vibration and misalignment result in predictable bead placement
- Reliable Wire Feeding: Secure fit maintains optimal welding conditions and reduces interruptions
- Increased Productivity: Consistent performance speeds up work cycles and minimizes downtime
What materials and manufacturing processes ensure long service life?
RAX Industrial's contact tip holder is precision-machined from high-quality copper, selected for its superior electrical conductivity and ability to withstand the friction, heat, and pressure of continuous welding operations. This construction offers excellent cost-effectiveness by reducing replacement frequency over time.
What are the technical specifications?
The holder features thread sizes including M6 and M10*65*M14*1 right-hand threads, available in lengths of 35mm and 37mm. These dimensions are engineered to match standard thread configurations for reliable compatibility across multiple torch systems.
Which welding torches is this compatible with?
This holder fits popular torch models including the Trafimet ErgoPlus 25, Binzel MB25AK, and Everlast EV-25. It also interchanges with OEM parts like the Trafimet ME0016 and Binzel 142.0001.
To ensure compatibility, verify your torch's requirements against the technical specifications above, particularly thread size and model designation. Consult your torch manual for specific requirements.
What industries and applications is this suited for?
This component is versatile enough for professional applications in automotive, construction, and manufacturing industries, as well as DIY projects. Its durability and precision make it effective for both light-duty and heavy-duty MIG welding scenarios.
What purchasing options are available?
The MIG Contact Tip Holder is offered in various quantities to meet different operational needs, including single pieces, 2-piece kits, or 10-piece packs for high-usage scenarios.
