Welding aluminum can be tricky if your metal isn’t spotless. Dirt, oil, and the tough oxide layer can sabotage weld quality, making your work weaker. Preparing filler and base metals properly means stronger, defect-free welds. Let’s explore what you need to do to clean and prepare aluminum like a pro for flawless welding every time.
Table of Contents
- 1 Why Cleaning Aluminum Before Welding is Important
- 2 Key Steps in Cleaning Aluminum Before Welding
- 3 Joint Preparation for Welding
- 4 Tools to Use for Cleaning Aluminum
- 5 Benefits of Properly Cleaned Aluminum
- 6 Common Challenges When Welding Aluminum
- 7 Tips for Successful Aluminum Welding Preparation
- 8 Frequently Asked Questions (FAQ)
- 8.0.1 Q1: Can you weld aluminum without removing the oxide layer?
- 8.0.2 Q2: What is the best solvent for degreasing aluminum before welding?
- 8.0.3 Q3: How should aluminum filler metals be stored?
- 8.0.4 Q4: Is it necessary to use a dedicated brush for aluminum?
- 8.0.5 Q5: How soon should you weld after cleaning aluminum?
- 9 Conclusion
Why Cleaning Aluminum Before Welding is Important
The aluminum oxide layer, which forms naturally on the surface, has a much higher melting point than the base aluminum metal. This means that if it is not properly removed, it can lead to issues such as poor fusion, porosity, or weak joints. Additionally, contaminants like oil, dirt, grease, and airborne dust can affect the strength and overall quality of the weld, causing failures in the finished product.
To produce strong, defect-free welds, it is essential to remove both the oxide layer and any contaminants before welding. The process involves both mechanical and chemical cleaning, depending on the level of contamination.
Key Steps in Cleaning Aluminum Before Welding
1. Degreasing the Surface
The first step is to remove any grease or oil on the surface of the aluminum. Even if the aluminum looks clean to the naked eye, it could still have traces of oil or grease that can severely impact weld quality.
- Use a Degreaser: A liquid degreaser, such as acetone, methyl ethyl ketone, or lacquer thinner, should be used to thoroughly remove all oils. These solvents evaporate quickly and leave no residue.
- Lint-Free Cloth: Apply the degreaser using a lint-free cloth or paper towel. Avoid using shop rags, as they often contain residues of oil or other contaminants that can make the problem worse.
2. Removing the Oxide Layer
After degreasing, the next step is removing the aluminum oxide layer. This oxide layer is challenging because it has a melting point that is significantly higher than aluminum itself.

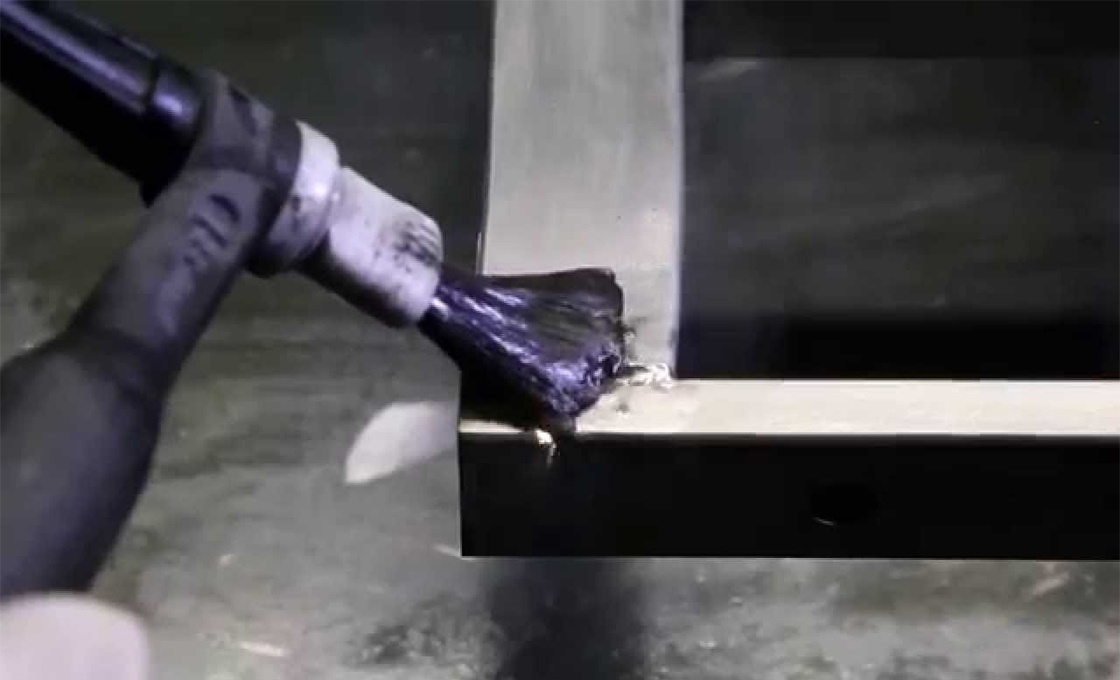

- Wire Brush: Use a stainless steel wire brush dedicated solely to aluminum. Brushing should be done in one consistent direction to prevent further oxidation and to avoid embedding contaminants.
- Mechanical Abrasion: For more stubborn oxide layers, mechanical tools like rotary abrasive pads or scrapers can be used. Care should be taken to avoid scratching or burnishing the aluminum, which could lead to more oxide forming rather than being removed.
3. Rinse and Dry
After scrubbing, rinse the aluminum thoroughly to remove any residual cleaning agents, followed by drying completely. Any water or residue left on the surface can also result in contamination and poor weld quality.
4. Handling and Storage Before Welding
Proper handling and storage of aluminum base and filler metals play a crucial role in ensuring a successful weld.
- Store in a Dry Place: Both filler and base metals should be stored in a dry, clean area, preferably in a heated cabinet to avoid condensation. Condensation can lead to oxidation, which means more cleaning is required before welding.
- Bring to Room Temperature: Bring filler and base metals into the welding area at least 24 hours prior to welding to avoid condensation due to temperature differences.
Joint Preparation for Welding
Before welding aluminum, it is important to prepare the joint thoroughly. Here are some best practices to follow:
- Mechanical Preparation: Mechanically clean the weld joint area, ensuring all edges are free of any oxide, grease, and dirt.
- Dry Completely: Ensure the aluminum is thoroughly dried before welding, as any moisture can lead to porosity issues during welding.
- Avoid Compressed Air: Do not use compressed air to clean the joint, as this can introduce moisture and oil particles.
Tools to Use for Cleaning Aluminum
Here are some recommended tools that are effective for preparing aluminum:
- Stainless Steel Wire Brush: Use a brush with soft bristles that is exclusively used for aluminum. This helps minimize cross-contamination.
- Degreasing Solvents: Solvents like acetone are preferred because they effectively remove grease without leaving residue.
- Abrasive Pads: Use soft, non-abrasive pads to gently remove oxide without causing further scratches or oxidation.
Benefits of Properly Cleaned Aluminum
Cleaning and preparing aluminum before welding has numerous benefits:
- Stronger Welds: Clean surfaces result in better fusion between the filler and base metals, producing stronger and more durable welds.
- Reduced Welding Defects: Proper cleaning minimizes porosity, cracking, and incomplete fusion, leading to a smoother, defect-free weld.
- Improved Appearance: A clean weld joint produces a visually appealing finish, which is especially important in applications where aesthetics matter.
Common Challenges When Welding Aluminum
Welding aluminum comes with unique challenges that must be addressed to ensure successful welding:
- High Thermal Conductivity: Aluminum’s high thermal conductivity makes it easy to burn through if proper control is not maintained during welding.
- Oxide Layer Issues: The oxide layer has a much higher melting point than the aluminum itself, requiring thorough removal before welding.
- Porosity Risks: Moisture, hydrocarbons, and oils can lead to hydrogen inclusion, resulting in porosity that compromises weld integrity.
Tips for Successful Aluminum Welding Preparation
- Dedicated Tools: Always use brushes, abrasives, and tools specifically dedicated to aluminum to prevent cross-contamination.
- Proper Handling: Handle aluminum with clean gloves to avoid transferring oils from your hands to the cleaned surfaces.
- Timing: Try to weld as soon as possible after cleaning to minimize the reformation of the oxide layer. Aluminum starts oxidizing immediately, and even a short delay can degrade weld quality.
Frequently Asked Questions (FAQ)
Q1: Can you weld aluminum without removing the oxide layer?
A1: No, the oxide layer has a higher melting point than aluminum itself, leading to weak joints or lack of fusion if not removed.
Q2: What is the best solvent for degreasing aluminum before welding?
A2: Acetone is often considered the best solvent for degreasing aluminum, as it effectively removes oils and grease without leaving residue.
Q3: How should aluminum filler metals be stored?
A3: Aluminum filler metals should be stored in a dry, temperature-controlled area to prevent moisture and oxidation, ideally in a heated room or cabinet.
Q4: Is it necessary to use a dedicated brush for aluminum?
A4: Yes, always use a dedicated stainless steel brush for aluminum to avoid cross-contamination, which could introduce unwanted residues and affect weld quality.
Q5: How soon should you weld after cleaning aluminum?
A5: It’s best to weld aluminum immediately after cleaning, as the oxide layer begins to reform almost instantly once exposed to air.
Conclusion
Mastering aluminum welding starts with excellent cleaning and prep. The difference between a weak weld and a solid one lies in eliminating contaminants and oxidation. Don’t cut corners—keep your metals clean, use the right tools, and weld soon after prepping. Follow these simple rules, and you’ll consistently create welds that are both strong and visually stunning.
