Stud welding is an efficient and cost-effective method for attaching fasteners to a wide range of base materials, including metals such as stainless steel, mild steel, aluminum, copper, and brass. The use of a stud welding gun makes this process convenient, precise, and suitable for both industrial and construction applications.

Types of Stud Welding Guns

Drawn Arc Stud Welding Guns

Drawn Arc Stud Welding GunsDrawn arc stud welding guns are designed for heavy-duty applications where strong welds are needed. These guns are typically used for welding larger diameter studs (ranging from 3 mm to 25 mm) and are ideal for base materials that are thicker than 2 mm. Drawn arc welding guns utilize a drawn arc process to create a molten pool that the stud is inserted into, resulting in a secure bond with excellent penetration.

  • Standard Drawn Arc Guns: These guns are equipped with 50mm² or 70mm² cables, allowing them to weld studs of different diameters, with thicker cables being suitable for larger studs.
  • Hi-Lift Drawn Arc Guns: These guns are designed to lift the stud to a pre-set height before welding, which helps achieve a strong and penetrative weld. They are suitable for welding studs of up to 25 mm in diameter and are frequently used in multi-gun applications.

Capacitor Discharge Stud Welding Guns

Capacitor Discharge Stud Welding GunsCapacitor discharge (CD) stud welding guns are used for applications involving smaller diameter studs (up to 10 mm) and thin base materials. The CD process involves a rapid discharge of stored energy, which melts the stud and forms a weld without significantly affecting the reverse side of the material.

  • Contact CD Guns: The Contact C2 stud welder gun is a popular choice for thin-gauge sheet metals, such as those above 1 mm in thickness. It allows for precise and easy welding, making it suitable for a variety of manufacturing purposes.
  • Lift Gap CD Guns: These guns utilize a lift-gap approach, meaning the stud is initially lifted off the surface before creating an arc, which results in a cleaner and more consistent weld.

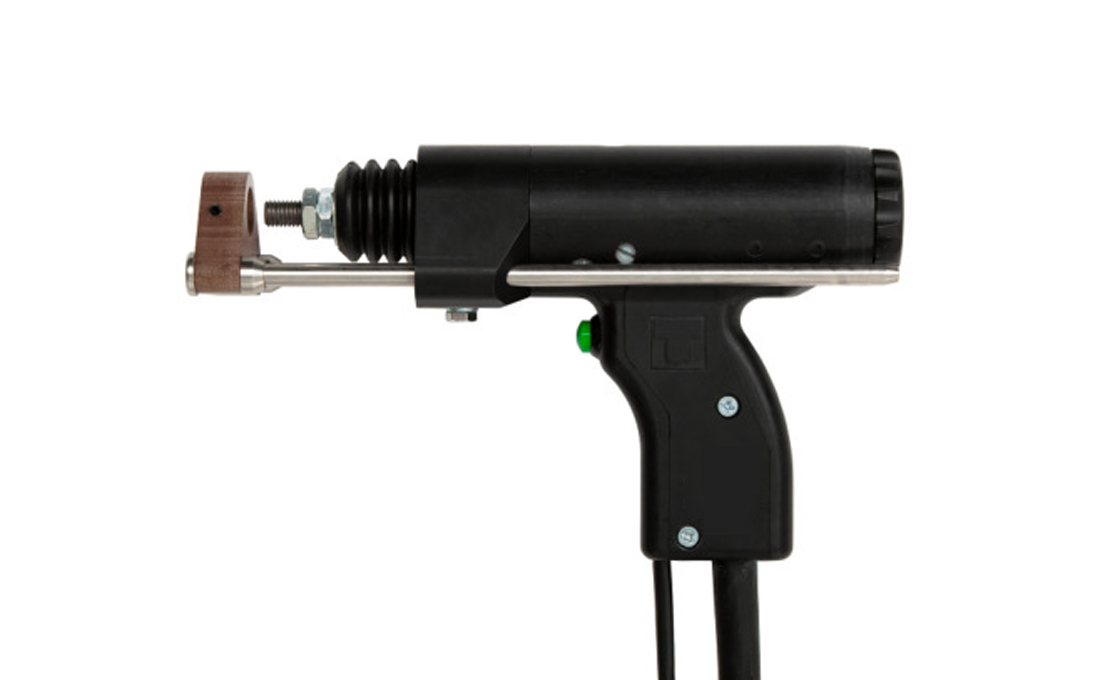

Short Cycle Stud Welding Guns

Short Cycle Stud Welding GunsShort cycle stud welding guns are used for applications requiring fast welds. These guns are generally easier to automate and require fewer steps compared to drawn arc welding guns. Short cycle welding can be used on materials with curvature or imperfections and is most suited for high-volume applications (Source: WeldWiki).

Factors to Consider When Choosing a Stud Welding Gun

Welding Application and Material

The welding application and type of material play a significant role in determining the appropriate stud welding gun:

  • Drawn Arc Stud Welding: Best suited for thicker materials and larger studs, typically used in heavy-duty applications where a strong, penetrative weld is required. It is ideal for steel, stainless steel, and aluminum alloys.
  • Capacitor Discharge Welding: Suitable for thin-gauge materials, especially when reverse marking needs to be avoided. It is commonly used for materials like mild steel, brass, and copper.

Stud Diameter and Base Material Thickness

The diameter of the stud and the thickness of the base material are important considerations:

  • Drawn Arc Welding Guns are more appropriate for larger studs and thicker materials, providing a strong and lasting bond.
  • Capacitor Discharge Guns work well with smaller studs and materials as thin as 0.7 mm, minimizing thermal effects on the material.

Portability and Ease of Use

The portability of a stud welding gun is also an important factor:

  • Drawn Arc Guns: Typically larger and more powerful, designed for use in fixed settings with high amperage power supplies.
  • Capacitor Discharge Guns: Lightweight and portable, making them suitable for small, repetitive tasks and worksite welding where ease of movement is essential.

Features of a Good Stud Welding Gun

Adjustable Welding Settings

When selecting a stud welding gun, it is crucial to consider adjustable welding settings to ensure optimal weld quality and adaptability for different tasks. These features allow you to control various welding parameters, such as:

  • Current and Voltage Control: Adjustable current and voltage settings help achieve the correct weld penetration for different materials and stud sizes.
  • Weld Duration: The ability to adjust weld duration is especially important for capacitor discharge welding, as it determines the heat input and affects the quality of the weld.

Compatibility with Power Sources

The compatibility of a stud welding gun with different power sources also plays an important role in determining its versatility. Some stud welding guns are compatible with multiple power sources, allowing users to switch between drawn arc, capacitor discharge, and short cycle welding.

  • Drawn Arc Guns: Require a constant power source and are often compatible with larger welding units that provide high amperage for thicker materials.
  • Capacitor Discharge Guns: Use energy stored in capacitors, making them suitable for quick and precise welding of smaller studs.

Cooling Systems

Stud welding guns generate a lot of heat during use, and choosing a gun with an appropriate cooling system is essential for maintaining consistent weld quality and prolonging the life of the equipment. There are two types of cooling systems:

  • Air-Cooled Guns: Suitable for lighter-duty applications where overheating is less of a concern. They are generally more compact and easier to handle.
  • Water-Cooled Guns: Ideal for heavy-duty, continuous welding applications, as they provide more effective heat dissipation, reducing the risk of overheating.

Maintenance Tips for Stud Welding Guns

Regular Inspection and Cleaning

Regular inspection and cleaning are key to ensuring the longevity and performance of your stud welding gun:

  • Inspect Contact Tips: Regularly inspect the contact tips for wear and replace them if necessary. Worn contact tips can lead to inconsistent welds and affect the overall quality of the weld.
  • Clean Gun Nozzles: Clean the gun nozzles frequently to prevent spatter buildup, which can obstruct proper gas flow and affect the welding arc.

Replacing Worn Parts

Welding guns are subject to significant wear and tear due to the high heat and electrical currents involved in the welding process. Replacing worn parts, such as contact tips, insulators, and liners, will help maintain performance and prevent costly repairs.

Calibrate Welding Parameters

Regular calibration of welding parameters ensures that the stud welding gun is functioning correctly and delivering consistent weld quality. Make adjustments based on the material and stud type to achieve optimal results.

Application Examples of Stud Welding Guns

Automotive Industry

Stud welding is widely used in the automotive industry for attaching various components, such as brackets, cable holders, and insulation fasteners. Drawn arc stud welding guns are often used for these applications due to their ability to weld large studs onto the chassis, ensuring secure and strong bonds.

Construction and Infrastructure

In the construction industry, drawn arc stud welding guns are commonly used for applications like securing shear connectors to steel beams in building structures and bridges. The robust and reliable welds provided by drawn arc welding ensure the stability and strength of structural elements.

Electrical and HVAC Installation

Capacitor discharge stud welding guns are used in electrical and HVAC installation to attach studs to thin metal sheets without causing reverse marking or damage to the material. This method is particularly useful for installing electrical enclosures, ductwork, and insulation pins.

Frequently Asked Questions (FAQ)

Q1: What materials are suitable for stud welding?
A1: Stud welding can be performed on various materials, including stainless steel, mild steel, aluminum, brass, and copper.

Q2: What is the difference between drawn arc and capacitor discharge stud welding?
A2: Drawn arc welding is used for larger studs and thicker materials, while capacitor discharge is suitable for small studs on thin materials.

Q3: Can stud welding be automated?
A3: Yes, stud welding, especially the short cycle method, can be automated due to fewer procedural steps and the use of inert shielding gas.

Q4: What power source is required for drawn arc stud welding?
A4: Drawn arc welding typically requires a 415-volt, three-phase power source, making it suitable for heavy-duty applications.

Q5: What are the common types of studs used in stud welding?
A5: Common types include threaded, unthreaded, and internally threaded studs, with diameters ranging from 1 mm to 30 mm.
