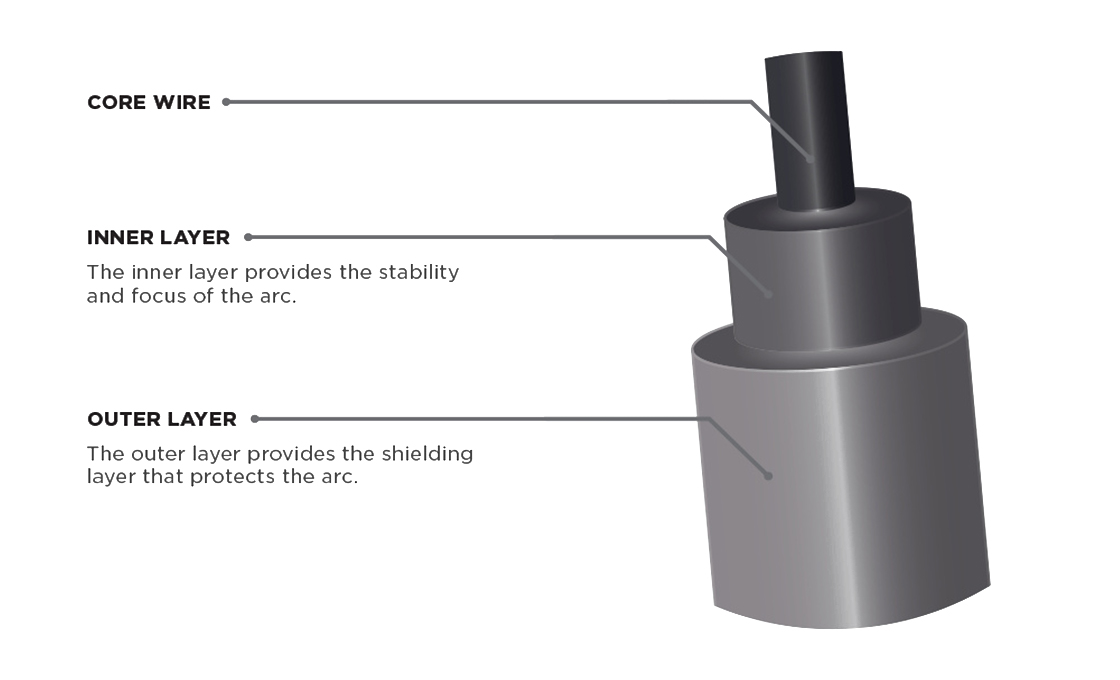

Low hydrogen electrodes have revolutionized the world of welding, especially in applications requiring high strength and resistance to cracking. These electrodes are designed to minimize the hydrogen content in the weld metal, reducing the risk of hydrogen-induced cracking, which is especially critical for structural steel and high-strength alloys.
Table of Contents
A Brief History of Low Hydrogen Electrodes
The demand for stronger, more reliable welds increased during World War I, especially in shipbuilding and other industries where hydrogen embrittlement was a significant issue. Early electrodes were prone to introducing hydrogen into the weld pool, leading to cracking under stress.
By the 1930s, new electrode designs were developed with low-hydrogen coatings, leading to the creation of modern low hydrogen electrodes like E7018, which became widely adopted for its ability to create crack-resistant welds. The addition of moisture-resistant coatings and the use of basic fluxes further enhanced their performance.
Key Properties of Low Hydrogen Electrodes
Low hydrogen electrodes offer several advantages:
- Hydrogen Control: These electrodes are rated by hydrogen content, commonly designated as H4, H8, and H16, where lower numbers indicate lower hydrogen content, helping prevent cracking.
- Moisture Resistance: Electrodes with an “R” suffix are designed to resist moisture absorption, further reducing the risk of hydrogen contamination in humid conditions.
- Versatility: Low hydrogen electrodes can weld a wide range of materials, including high-carbon steel, low-alloy steel, and thick sections.
Best Practices for Low Hydrogen Electrodes
1. Storage and Handling
Low hydrogen electrodes must be stored in dry conditions. Rod ovens are typically used to keep these electrodes between 250°F and 300°F to prevent moisture absorption. If exposed to moisture, they should be baked at higher temperatures to recondition them.
- Tip: Always check the manufacturer’s recommendations for storage temperatures.
2. Correct Arc Length
When using low hydrogen electrodes, maintaining a short arc is crucial. A longer arc can increase the voltage and introduce porosity into the weld. Ensure the electrode remains close to the weld pool but not touching.
- Tip: A short arc also reduces spatter and creates a cleaner weld.
3. Amperage Settings
Setting the correct amperage is key to protecting the electrode’s coating. Running too high an amperage can cause the coating to burn off prematurely, exposing the weld pool to atmospheric contamination.
- Tip: Adjust your machine based on the electrode diameter and the material thickness. Manufacturers often provide amperage guidelines for optimal results.
Common Issues and Troubleshooting with Low Hydrogen Electrodes
Even with proper techniques, certain challenges can arise when using low hydrogen electrodes in SMAW welding. Below are some common issues and tips on how to address them:
1. Porosity in Welds
Porosity is a common problem when using low hydrogen electrodes, often caused by improper arc length or contamination of the base material. Arc length is especially critical when using electrodes like E7018, as pulling the arc too far can lead to gas pockets in the weld.
- Solution: Always maintain a short arc and ensure the base material is free of oils, rust, or moisture before starting the weld.
2. Hydrogen-Induced Cracking
Despite the low hydrogen content, welds may still crack if improper procedures are followed. Hydrogen-induced cracking typically occurs in the heat-affected zone (HAZ) of thicker materials or high-strength steel.
- Solution: Preheat the material according to its thickness and cool slowly after welding. Using a rod oven to keep the electrodes dry and at the correct temperature is also essential.
3. Slag Inclusion
Slag inclusions occur when slag from the electrode coating becomes trapped in the weld. This can compromise weld quality, especially in multi-pass welds where each layer of slag must be removed before continuing.
- Solution: Clean each weld pass thoroughly using a chipping hammer and wire brush. Also, maintain proper travel speed to ensure slag floats to the surface.
Advanced Welding Techniques for Low Hydrogen Electrodes
Mastering low hydrogen electrodes requires not only good technique but also understanding of advanced welding methods for specific applications. Below are some advanced techniques that can be applied with low hydrogen electrodes:
1. Weave Beads for Better Coverage
Weaving the electrode back and forth across the weld joint creates wider weld beads and provides better coverage for thicker materials. This technique is particularly useful for structural welds and multi-pass welding.
- Tip: Keep the weave pattern tight to avoid excessive heat buildup, which could lead to cracking.
2. Preheating and Post-Weld Treatments
Preheating is especially important when welding thick sections of carbon steel or low alloy steels. By heating the base material to around 250°F to 400°F (depending on the material), you reduce the risk of hydrogen embrittlement and cracking.
- Tip: After welding, apply slow cooling or controlled post-weld heat treatment (PWHT) to minimize stress in the weld.
Frequently Asked Questions (FAQ)
Q1: What is the purpose of low hydrogen electrodes?
A1: Low hydrogen electrodes are designed to minimize the amount of hydrogen in the weld metal, which helps prevent hydrogen-induced cracking, especially in high-stress or thick materials.
Q2: How should I store low hydrogen electrodes?
A2: These electrodes must be kept in a dry, heated environment—typically in a rod oven between 250°F to 300°F—to avoid moisture absorption, which can lead to weld defects.
Q3: What is the “R” designation on low hydrogen electrodes?
A3: The “R” designation indicates a moisture-resistant coating, which helps the electrode withstand humid environments better than standard electrodes.
Q4: Can low hydrogen electrodes be reused after exposure to moisture?
A4: Yes, but they need to be rebaked at 500°F to 800°F for 1-2 hours. However, it’s not recommended to rebake them more than twice, as it could compromise the electrode’s performance.
Q5: What materials are low hydrogen electrodes used for?
A5: They are ideal for high carbon, low-alloy steels, and thick sections where cracking is a concern. These electrodes produce strong, crack-resistant welds.
Q6: Why is preheating important when using low hydrogen electrodes?
A6: Preheating reduces the risk of cracking, especially in thicker materials or steels with high carbon content. It ensures the weld cools evenly and reduces stress on the joint.
Conclusion
Using low hydrogen electrodes like E7018 effectively requires attention to storage conditions, arc control, and amperage settings. Following best practices, such as maintaining a short arc and preheating the material, will help you achieve strong, crack-resistant welds. By incorporating advanced techniques like weaving and post-weld treatments, welders can further optimize their performance, ensuring the best possible results in challenging applications.
