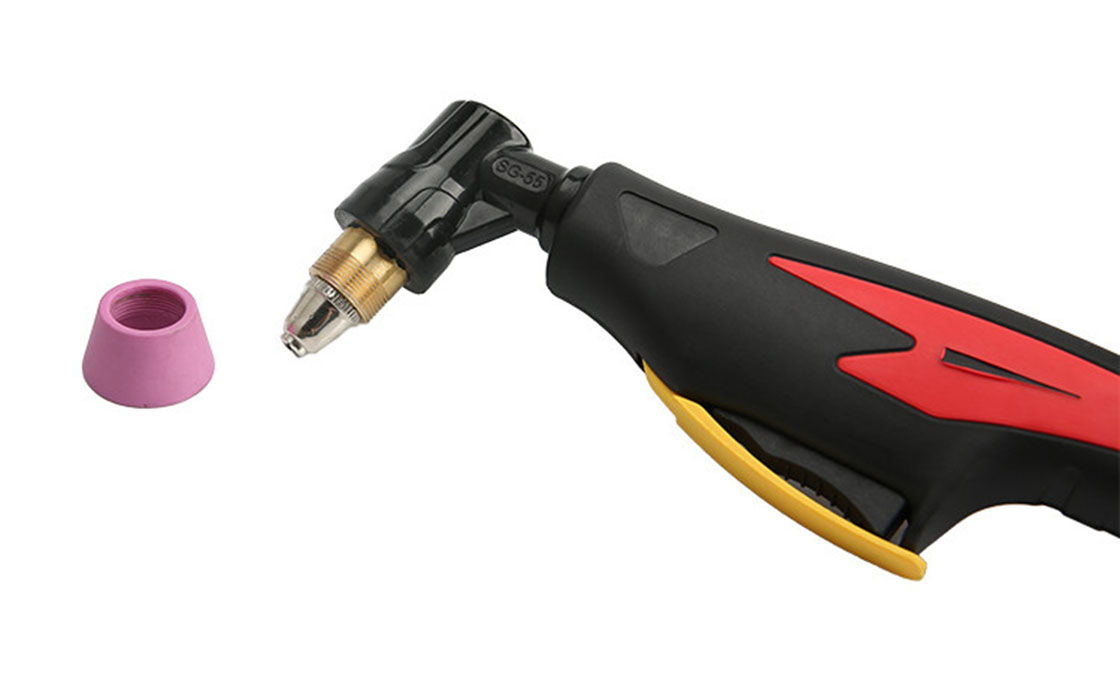

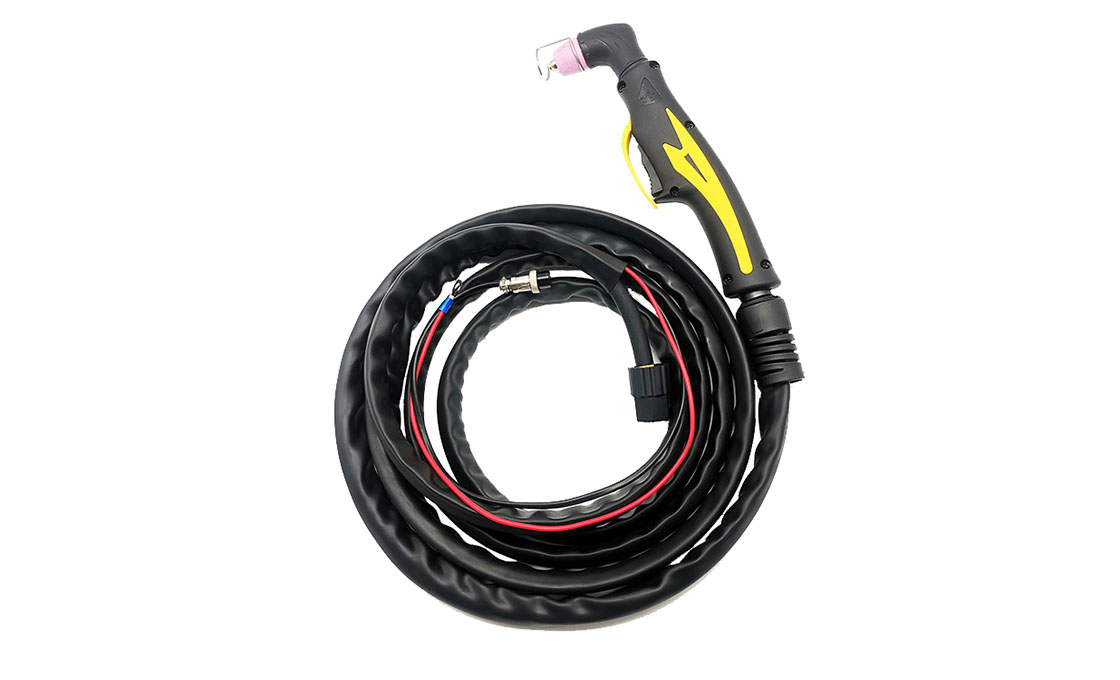

A plasma cutting torch cuts metal using a high-temperature ionized gas jet. The tool integrates with plasma cutting systems to process materials from thin gauge metal to thick plate, operating through a consumables system that includes electrodes, nozzles, shield caps, and swirl rings.
The torches feature air-cooled or liquid-cooled systems for stable operation in demanding work environments. They offer compatibility with various consumables for standard cutting, gouging, and precision work. Models are available as hand-held torches, mechanized torches for automated systems, and Computer Numerical Control (CNC) torch configurations, each offered in different amperage ratings and duty cycles.
The consumables system provides options for different amperages and specialized tasks including flush cutting and high-access work. Cable assemblies are available in multiple standard lengths with different connection types to fit specific machine models, facilitating integration as a direct replacement or upgrade to existing equipment across major brand plasma cutters.
Coverage includes parts and labor through a comprehensive warranty program, with service support available through authorized service centers for maintenance and repairs.
Certified Quality from a Leading Plasma Cutting Torch Wholesaler
With over 30 years of dedicated experience, RAX Industrial has established itself as a leading integrated manufacturer and supplier specializing in advanced welding and cutting solutions. Our expertise is directly channeled into the design and production of our Plasma Cutting Torch. We understand the critical need for reliable and precise cutting performance in any metalworking operation. Our team of over 50 R&D specialists ensures every torch is engineered to the highest standards, guaranteeing superior cutting capability from thin gauge metal to thick plate.
Our substantial 18,000 m² manufacturing facility, equipped with high-precision automation, allows for the consistent production of durable and high-performance torches. This scale and control translate directly into the sturdy construction, comfortable ergonomics, and long-lasting durability built into each Plasma Cutting Torch. As a member of the China Welding Association and a contributor to national standards, our commitment to quality is underscored by key certifications and services:
- ISO 9001:2015, CE, and RoHS certification.
- Exceptional OEM/ODM support to tailor solutions to your specific requirements.
Trust in our proven expertise for a plasma cutting tool designed to deliver optimal results.
| Parameter | Specification / Description |
|---|---|
| General Type | Plasma Cutting Torch |
| Primary Variants | Hand-held, Mechanized (Machine), CNC Torch |
| Amperage Rating | Available in different amperage ratings (e.g., 40A, 60A, 100A, 105A, 120A, 150A) |
| Duty Cycle | Offered with different duty cycles (e.g., 60% @ 120A; 100% @ 160A, 400A) |
| Cooling System | Air-cooled or Liquid-cooled (Water-cooled) |
| Max. Cutting Thickness | Up to 25-60 mm (depending on power source and consumables) |
| Cutting Gas / Fuel | Pressed Air, Oxygen, Nitrogen, LPG |

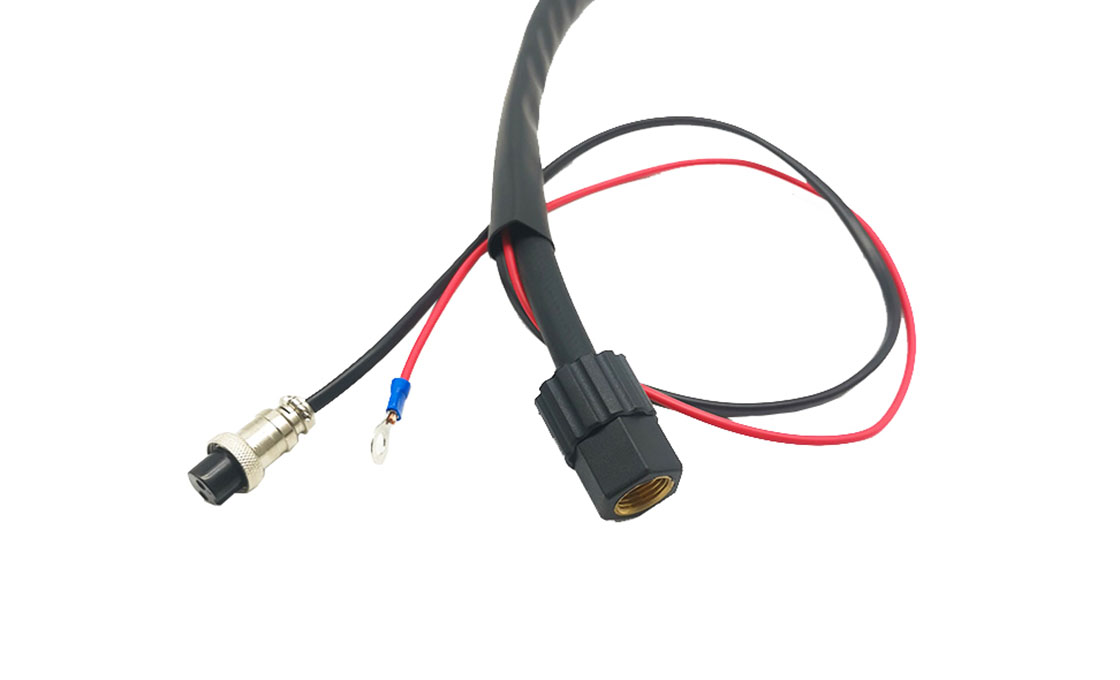

| Torch Cable Length | Cable assemblies available in multiple standard lengths (e.g., 20 ft / 6 m, 25 ft) |
| Connection Type | Various cable connection types to fit specific plasma cutter models (e.g., Euro, OEM-specific) |
| Key Consumables | Electrode, Nozzle (Tip), Shield Cap, Swirl Ring, Retaining Cap, Spacers |
| Consumable Compatibility | Compatible with a wide variety of consumables for different amperages and tasks (standard, gouging, precision, flush cutting) |
| System Compatibility | Designed for integration with a variety of major brand plasma cutting systems. |
| Primary Construction Material | Brass, Copper, Stainless Steel |
| Warranty & Support | Comprehensive warranty program with coverage for parts and labor. Service support via authorized centers. |
| Primary Applications | Cutting of mild steel, stainless steel, aluminum, copper, and other metals. Suitable for standard cutting, gouging, and precision work. |
Plasma Cutting Torch

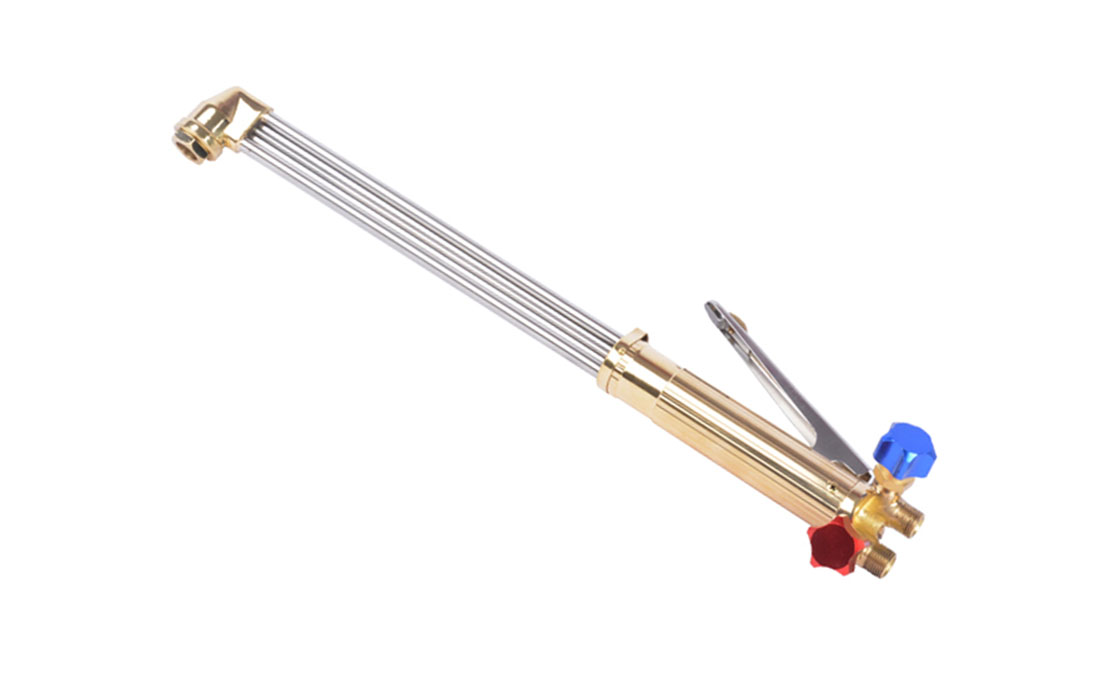

Gas Cutting Torch

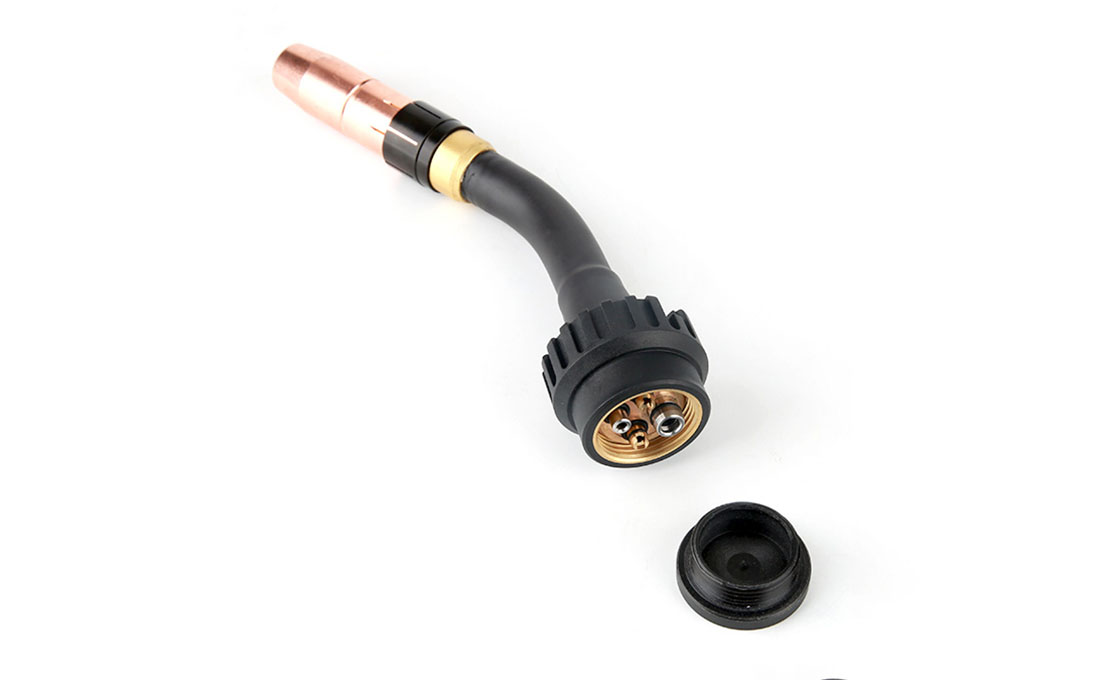

Robot Welding Torch
Frequently Asked Questions
How does plasma cutting technology work?
The technology creates a superheated, electrically conductive plasma arc by generating an electrical charge between an internal electrode and the metal workpiece. This ionizes a gas (typically compressed air) flowing through the torch, creating a plasma jet exceeding 20,000°C that melts the metal. A high-velocity gas stream then blows the molten material away, resulting in a clean cut.
What advantages does plasma cutting offer over traditional oxy-fuel methods?
Plasma cutting delivers several critical benefits for conductive metals:
- Speed: No pre-heating required, with significantly faster cutting speeds especially on thinner materials.
- Precision: Concentrated heat produces a narrower kerf, minimizing the heat-affected zone and reducing warping.
- Versatility: Excels at intricate curves, holes, and complex designs, particularly when integrated with CNC systems.
- Safety: Eliminates the need for storing and mixing combustible fuel gases.
What materials and thicknesses can RAX Industrial plasma torches cut?
Our torches handle mild steel, stainless steel, aluminum, copper, and other non-ferrous metals. Cutting capacity ranges from thin gauge metal up to 60mm or more for thicker plates, depending on the power source amperage.
What is the difference between air-cooled and water-cooled torches?
Air-cooled torches use flowing gas for thermal management, making them lighter, portable, and cost-effective for manual cutting applications. Water-cooled torches circulate coolant to handle higher power levels and extended continuous operation, making them the standard choice for automated CNC systems and high-duty-cycle production environments.
Should I choose a manual or automated torch system?
Selection depends on your operational requirements:
- Manual Torches: Ideal for portability, on-site work, repairs, and low-volume, high-mix production. Precision is operator-dependent.
- Automated Systems (CNC/Robotic): Designed for high-volume repetitive production with superior speed, accuracy, and consistency. They handle complex 2D/3D cutting paths with minimal operator intervention, dramatically increasing throughput for suitable applications.
What are the primary industrial applications?
Plasma cutting serves diverse industries for tasks including:
- General fabrication and metalworking (plates, sheet metal, pipes).
- Demolition, scrapping, and structural skeleton cutting.
- Precision cutting and beveling for shipbuilding, construction, and energy sectors.
- Gouging, flush cutting (bolt/nut removal), and metal marking.
- Automated high-volume production on CNC or robotic platforms.
What is the benefit of the single-piece cartridge consumable system?
The single-piece cartridge design combines multiple consumable components into one color-coded unit, eliminating assembly errors and confusion. The system automatically configures correct amperage and operating mode upon installation, removing setup mistakes. This approach minimizes changeover downtime while delivering longer consumable life and consistent cut quality.
What equipment is this torch compatible with, and are consumables readily available?
Our torches are precision-engineered for universal compatibility with major brands including Binzel, Tweco, Lincoln, Bernard, ESAB, Panasonic, and Miller, supporting various connection types (Euro central and machine-specific). Always verify your connection type for proper fit.
Standard consumables (electrodes, nozzles, shields, tips) are maintained through our extensive distribution network. We produce 11,000,000+ contact tips annually to ensure global availability and minimize downtime.
What warranty and support do you provide?
All products are backed by a comprehensive 12-month warranty. We provide dedicated 24/7 technical support with a 12-hour response time to maximize equipment uptime and ensure expert assistance is always available.
Do you offer OEM/ODM customization for equipment manufacturers?
We specialize in comprehensive OEM/ODM solutions as a core service. This includes free industrial design and prototyping tailored to your application requirements, full private labeling, aesthetic customization, and component modification to ensure seamless integration as a standard accessory.
Our agile supply chain and 20+ engineer R&D team support rapid, market-ready development. With 30+ years of experience, an 18,000 m² facility, and 180+ staff, we deliver 270,000+ welding torch sets annually with the capacity for long-term supply stability.
What are your lead times and distributor support programs?
We maintain a streamlined 15-day lead time to ensure rapid inventory turnover. For distributors and wholesalers, we fully support private labeling and provide comprehensive marketing resources, including high-quality product media and catalogs, to help you build brand loyalty and effectively promote the product line in your region.
