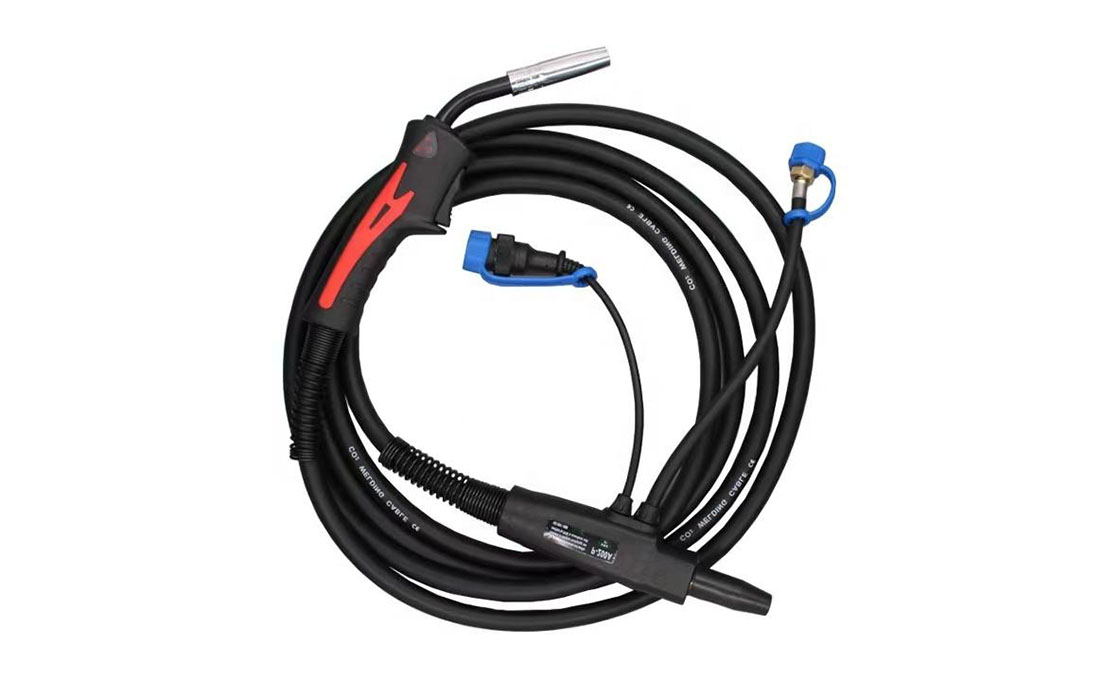

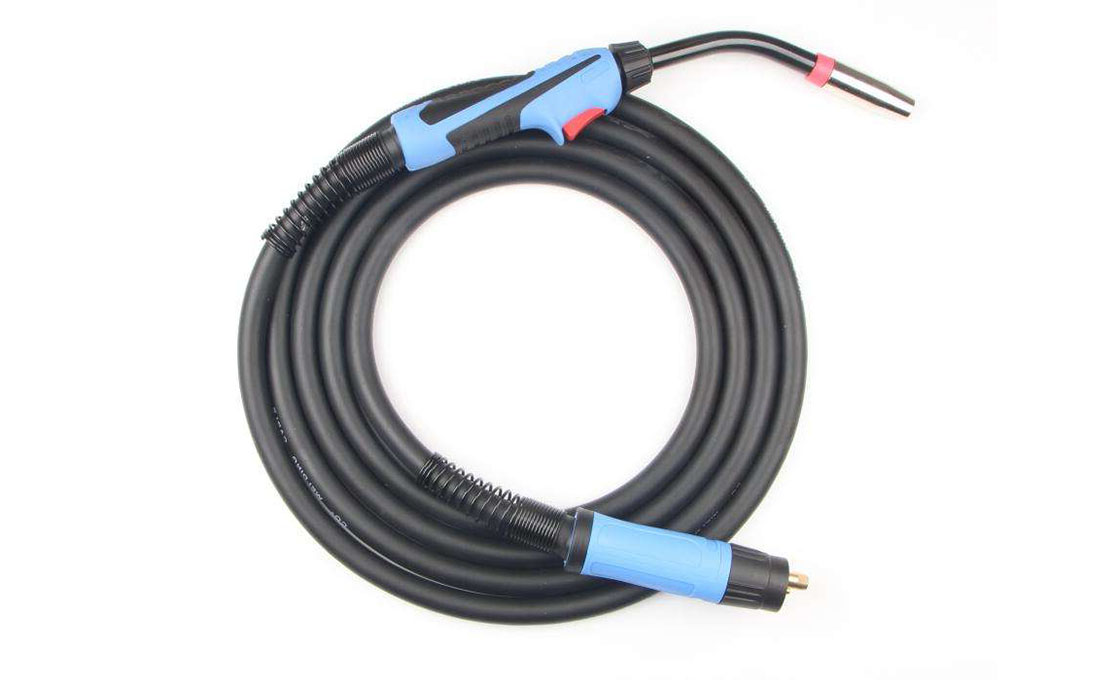

A MIG torch lead is a high-performance integrated assembly designed to deliver welding current, shielding gas, and the wire liner pathway from the feeder to the torch head. Engineered for professional MIG/MAG welding, our leads are constructed with high-conductivity copper cores and reinforced outer jackets, providing the exceptional flexibility and mechanical durability required for demanding industrial environments and high-duty cycle applications.
These cable assemblies are available in both air-cooled and water-cooled configurations, supporting welding currents up to 500 amperes depending on the specific model. The internal hoses are manufactured from premium, heat-resistant synthetic materials that prevent kinking and thermal degradation, ensuring a consistent shielding gas flow and smooth wire feeding throughout the service life of the welding system.
Our MIG torch leads feature universal connection interfaces, including industry-standard Euro-style connectors, ensuring seamless compatibility with a wide range of global welding power sources and wire feeders. Available in various lengths such as 10ft, 12ft, and 15ft (3m to 5m), each lead is precision-assembled to minimize electrical resistance and optimize power transfer, providing a reliable and cost-effective replacement solution for professional fabrication and heavy-duty manufacturing.
RAX Industrial: Premier MIG Torch Lead Manufacturer
For over 20 years, RAX Industrial has been a world-leading manufacturer and global supplier of heavy-duty welding torches for robotic and welding automation. We understand your MIG torch investment is a major operational cost, which is why our MIG Torch Leads are engineered with innovative designs to help reduce your total cost of ownership.
Our Manufacturing Advantage
Every MIG Torch Lead from our 18,000 m² integrated facility benefits from rigorous controls, including spectroscopic verification of raw materials and micro vision-inspection of critical dimensions. Our advanced measurement systems detect variances to .0005 inches, ensuring unparalleled consistency and durability.
Commitment to Quality & Service
Our commitment extends to innovative designs, superior service, and the highest quality products. We actively reduce environmental impact through RoHS-compliant manufacturing. With over 270,000 welding torch sets produced annually, our expertise is built into every lead.
| Feature | Available Options / Capability |
|---|---|
| Current Rating (Duty Cycle) | 150A – 500A (60% – 100% options) |
| Lead Lengths | 3m, 4m, 5m (Custom lengths available up to 15m) |
| Cooling Method | Air-Cooled (Gas) / Water-Cooled systems |
| Wire Diameter Compatibility | 0.6mm – 2.4mm (Depends on liner selection) |
| Inner Liner Materials | Steel, Stainless Steel, Carbon-Teflon (for Aluminum) |
| Outer Cable Jacket | High-flex, heat-resistant rubber or reinforced PVC |
| Connection Types | Euro-Central, Tweco®, Miller®, Lincoln® style connectors |
Frequently Asked Questions
What are the key components and functions of a professional MIG torch lead?
A MIG torch lead is a high-performance integrated assembly consisting of a high-conductivity copper power cable, a reinforced shielding gas hose, and a wire liner conduit. Its primary function is to deliver electrical current, protective gas, and the welding wire from the feeder to the torch head with minimal resistance and consistent flow, ensuring a stable welding arc.
What technical specifications and performance ratings define these leads?
Our MIG torch leads are categorized by cooling method and amperage capacity. We manufacture air-cooled leads rated up to 350A and water-cooled leads capable of handling up to 500A at high duty cycles. They are available in standard lengths of 10ft, 12ft, and 15ft (3m to 5m) to suit various industrial workshop configurations.
How does the design ensure durability and prevent cable failure?
Our leads feature heavy-duty, heat-resistant outer jackets made from specialized synthetic rubber or PVC. To prevent common failure points, we incorporate reinforced spring strain reliefs at both the machine and torch ends, which prevents kinking and internal cable breakage during frequent movement in demanding environments.
What are the considerations for wire feeding and gas flow integrity?
Smooth wire feeding is ensured through high-quality internal liners (steel for hard wires or Teflon for aluminum) designed for low friction. The gas hoses are manufactured to withstand high pressure and thermal exposure, ensuring that the shielding gas remains uncontaminated and flows at a consistent rate to the weld pool.
How does the lead design enhance operator comfort and maneuverability?
By utilizing high-flex braided copper and lightweight insulation materials, our MIG leads offer exceptional flexibility. This reduces the 'dragging' sensation and wrist torque for the welder, allowing for better torch control and reducing operator fatigue during extended high-production welding sessions.
How do the leads connect to equipment and what integration options are available?
Our MIG torch leads are equipped with industry-standard Euro-style central connectors, allowing for quick, tool-free connection to most global wire feeders and power sources. We also offer customized machine-side fittings to ensure compatibility with specific industrial welding systems.
Are specialized leads available for heavy-duty industrial applications?
Yes, we produce specialized high-amperage leads and water-cooled assemblies designed for continuous heavy-duty manufacturing. These leads feature enhanced thermal management and thicker copper cross-sections to maintain performance under 100% duty cycle conditions.
Are these leads suitable for aluminum or specialized alloy welding?
Our MIG leads are fully compatible with aluminum welding when equipped with appropriate Teflon or Carbon-Teflon liners. The internal design ensures the low-friction environment necessary to prevent bird-nesting and ensure the stable feeding of soft alloy wires.
