Plasma cutting consumables are high-precision components designed to stabilize the plasma arc under extreme thermal stress. Regular replacement of the electrode, nozzle, swirl ring, and shield is essential to maintaining clean kerf widths, minimal dross, and optimal cut speeds in industrial environments.

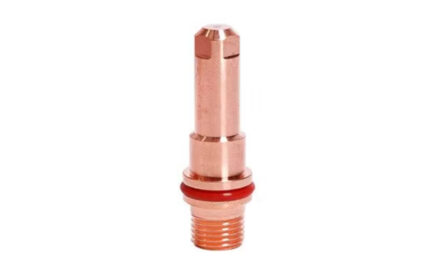

The electrode features high-purity copper with a premium hafnium insert for superior electrical conductivity. The nozzle is precision-machined to constrict and accelerate plasma gas, with orifice sizes tailored for applications from fine detailing to heavy-duty gouging. The swirl ring ensures laminar gas flow to center the arc, while the shield protects internal parts from molten blowback.
Consumable wear directly impacts precision. Nozzle degradation causes inconsistent kerfs, while electrode life is measured by hafnium erosion. In industrial applications, replacement is recommended when the electrode pit depth reaches 1.0–1.6 mm. Replacing the nozzle and electrode as a matched set is an industry best practice to ensure synchronized tolerances and peak performance.
By maintaining correct gas pressures and amperage settings, fabricators achieve a lower total cost-per-cut and the reliability required for high-volume production and complex geometries.

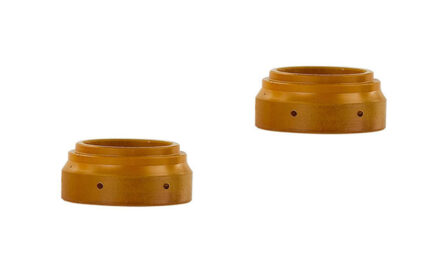

Plasma Swirl Ring
The plasma swirl ring sits around or just behind the electrode and controls the swirling motion of the plasma gas. By centering and constricting the arc as it passes through to the nozzle, it improves cut-edge angularity, increases nozzle life, and enables faster cutting speeds on thicker materials.

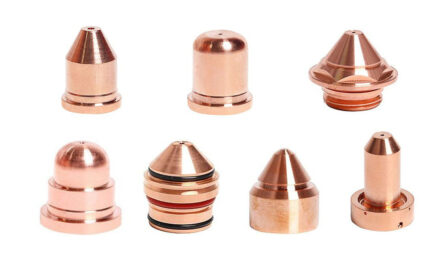

Plasma Nozzle
The plasma nozzle surrounds the plasma arc and precisely shapes, directs, and constricts it through a calibrated orifice. Different orifice sizes and designs support fine, detailed cutting or higher-amperage cutting and gouging, so a correctly matched nozzle is essential for clean kerfs and minimal dross.

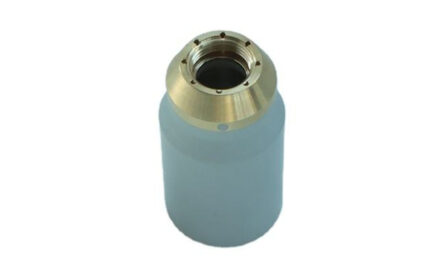

Plasma Shield Cup
The plasma shield cup, or shield cap, fits on the front of the torch to protect the nozzle and other consumables from molten splatter and double arcing. It also helps cool the front end and can shape secondary or shield gas flow, improving cut quality, speed, and drag-cutting performance.
Trusted Global Supplier of Precision Plasma Cutting Consumables
RAX Industrial has been a complete solution provider in the field of plasma cutting and welding. Plasma consumables are critical components, directly impacting cut quality, efficiency, and precision. Founded in 1999, with over 20 years of experience and an 18,000 m² manufacturing hub, we leverage a team of 50+ R&D specialists and state-of-the-art automation to innovate for your needs. Our Plasma Cutting Consumables are guaranteed to save you 25-30% over OEM prices.
We understand consumable performance hinges on proper use. Frequent replacement often stems from:
- improper gas flow,
- incorrect pierce height, or
- poor work cable connections.
To extend life, we recommend:
- regular inspections,
- keeping components clean, and
- verifying gas pressure.
Our consumables are precision-engineered from superior materials, ensuring minimal wear and consistent cuts, backed by rigorous quality control and certifications like ISO 9001:2015.
INNOVATING FOR YOU, with proven expertise delivering to 40+ countries. Contact RAX Industrial today to discuss your cutting needs and learn about our products.
Other Products You May Like
Frequently Asked Questions
What are plasma cutting consumables and how do their components function?
Plasma cutting consumables are wear components in the cutting torch that degrade over time from extreme heat and stress. They work together to create and focus the plasma arc for cutting. Key components and their functions include:
How do I identify worn consumables and what are the risks of using them?
The nozzle and electrode wear out fastest due to direct involvement in the arc. Key signs and risks include:
What materials and applications are plasma cutting consumables designed for?
Plasma cutting consumables are suitable for cutting electrically conductive metals, offering versatility across industries.
What should I consider regarding consumable compatibility and specifications?
Using compatible consumables is crucial for reliable performance and optimal cut quality.
What factors affect consumable lifespan and how can I optimize maintenance?
Consumable life varies based on operational factors. To prolong lifespan and ensure performance:
What are the benefits of high-quality consumables and where can I get support?
High-quality consumables enhance cost-effectiveness by enabling fast, precise cuts that reduce material waste and secondary finishing, minimizing machine downtime through reliable performance, and offering a lower cost-per-cut in high-volume production.
