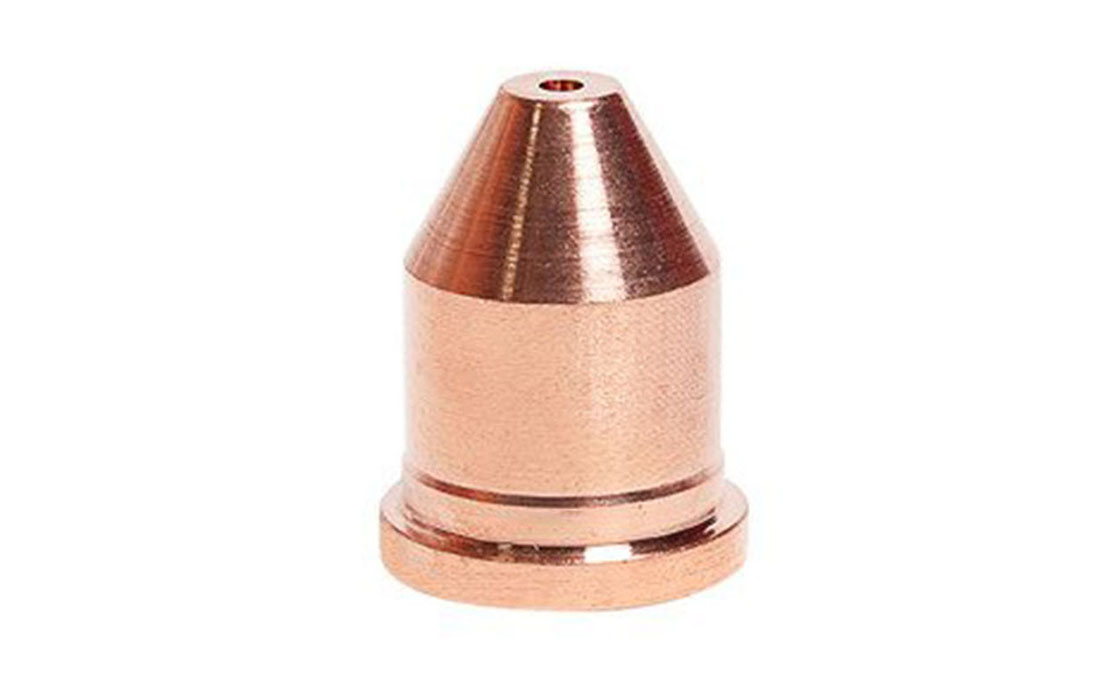

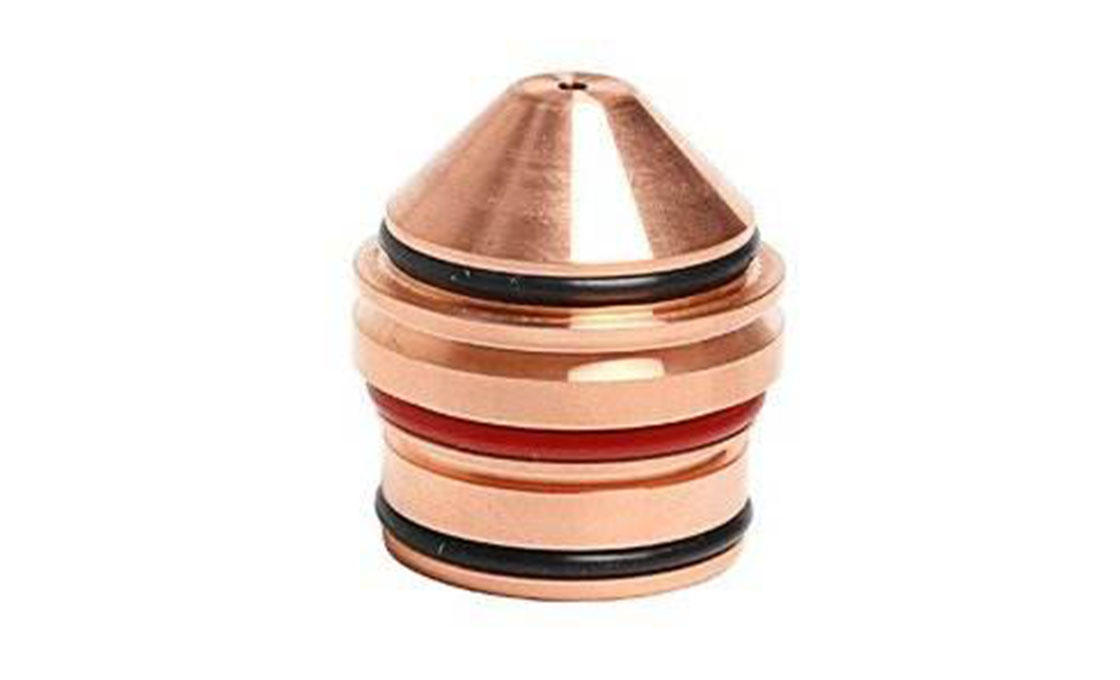

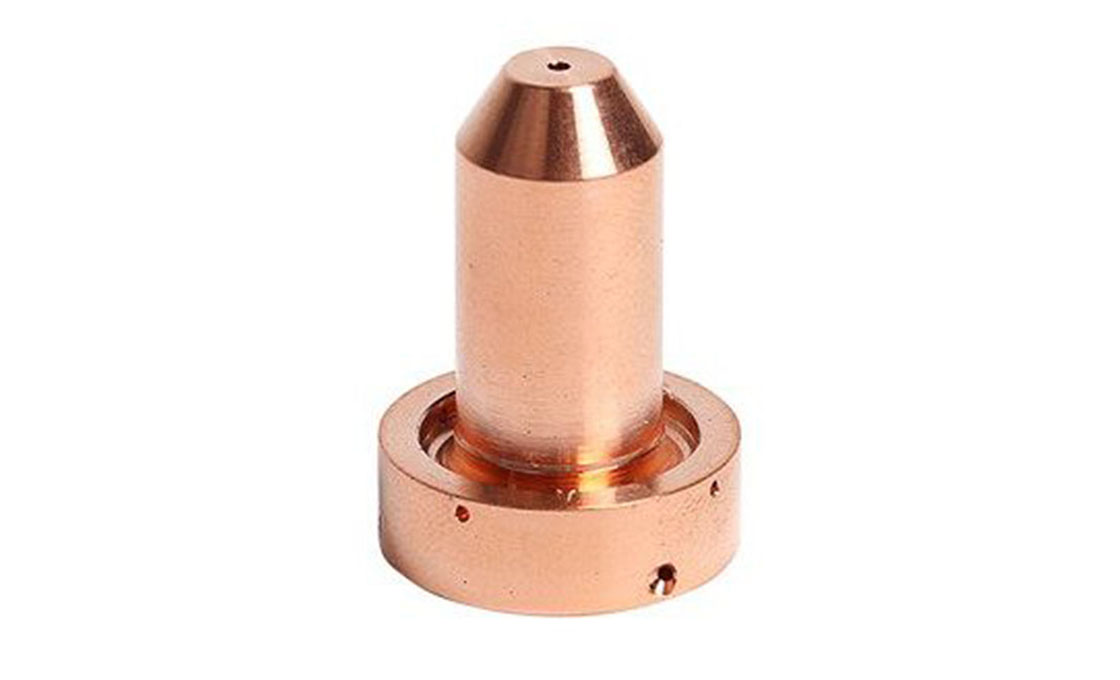

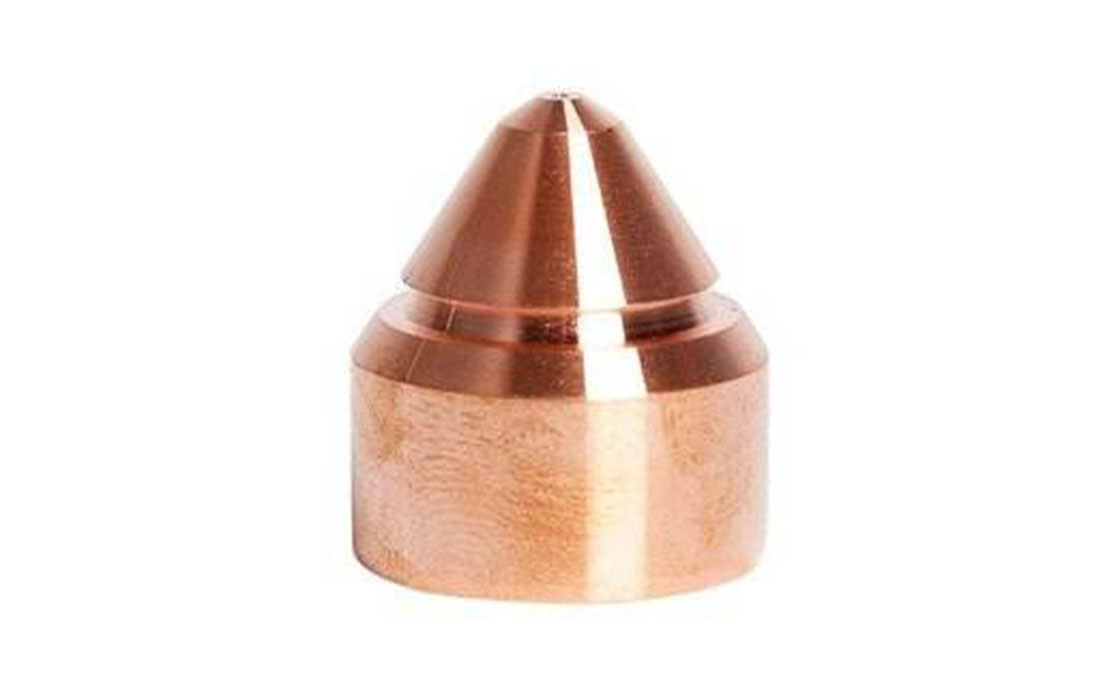

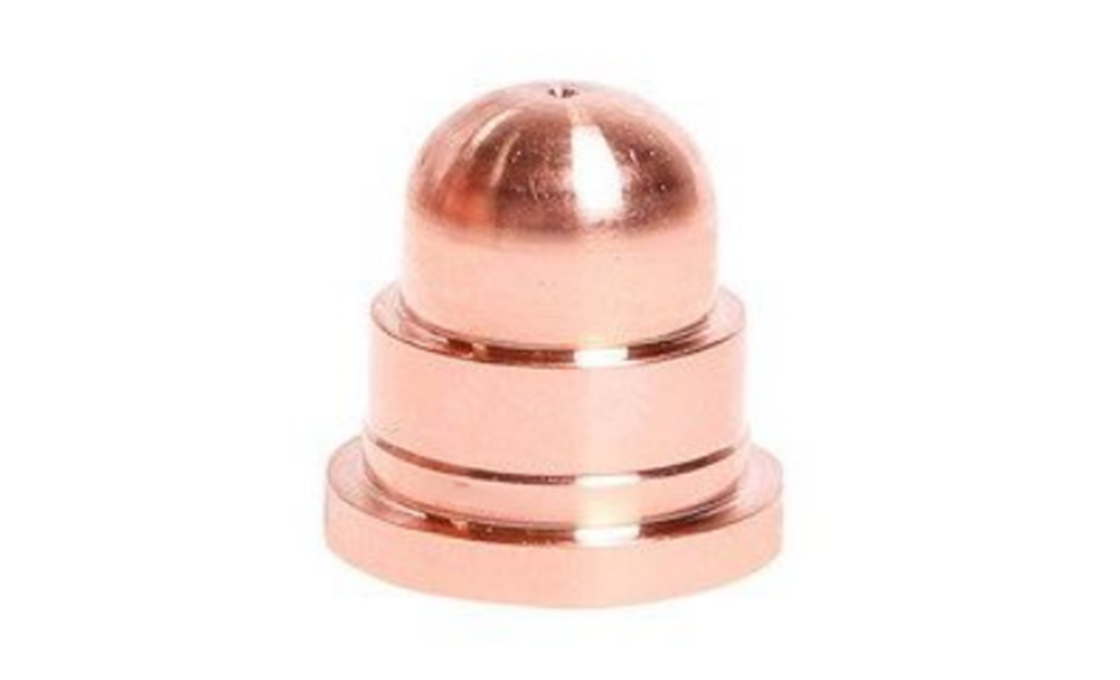

A plasma nozzle is a standard consumable component designed to constrict and direct the plasma arc for efficient metal cutting. Precision-machined from high-conductivity industrial copper, these nozzles offer the necessary thermal resistance and electrical properties required for consistent arc performance. This focused constriction ensures stable cutting speeds and reliable edge quality for various general-purpose metal fabrication tasks.
Our nozzles are manufactured using standard CNC processes to maintain consistent orifice dimensions and concentricity, supporting common amperage ratings from 40A to 105A. They are engineered for broad compatibility with industry-standard plasma torch platforms, including the SL, iPT, and PT series. These components serve as reliable, cost-effective replacements for major torch brands, ensuring seamless integration with standard electrodes and swirl rings.
Designed for high-volume B2B supply, these copper nozzles provide a balanced solution between performance and cost for fabrication shops and maintenance departments. They deliver reliable results on carbon steel and other conductive metals, helping operators maintain steady production cycles while minimizing consumable expenses in daily industrial operations.
RAX Industrial: Premier Plasma Nozzle Manufacturer
For over 20 years, RAX Industrial has been an integrated R&D and manufacturing leader, constantly improving and updating our cutting and welding products to meet your evolving needs. As an independent manufacturer with an 18,000 m² facility and 50+ specialists, we engineer our plasma nozzles for superior performance.
Our engineering expertise directly benefits our Plasma Nozzle. We utilize advanced methods like back-casting to achieve a seamless, integral connection in alloy components. This results in even heat conduction, high strength, and minimizes operational issues for enhanced efficiency.
- Longer lifespan, higher precision. Our manufacturing process, supported by high-precision automation and robotic manipulators, ensures perfect combination and better thermal conductivity for a more durable and reliable nozzle.
- Ample inventory, shorter lead time. With an agile supply chain, we maintain stock of common products and offer a 15-day lead time, ensuring you get the necessary plasma consumables promptly.
- Multiple material choices. We offer various material options for different performance requirements. Our R&D team provides free technical support for customization based on your specific application.
Have you encountered issues such as cracks in the nozzle’s interior or poor performance? Feel free to consult our specialists for free advice on your specific operational needs.
| Technical Parameter | Standard Specification |
|---|---|
| Product Type | Standard Plasma Cutting Nozzle |
| Material | High-Conductivity Industrial Copper |
| Amperage Range | 40A, 60A, 80A, 100A |
| Machining | Standard Precision CNC Machining |
| Compatibility | Fits industry-standard SL-series, iPT, and PT torch models |
| Application | General-purpose metal cutting and gouging |
| Supply Form | Industrial bulk packaging for B2B wholesale |
Frequently Asked Questions
What is the primary function of a standard plasma nozzle?
A standard plasma nozzle constricts the ionized gas flow into a concentrated jet. This constriction increases the arc's energy density, allowing it to melt through metal more efficiently and providing the direction needed for a straight, clean cut.
How do I choose the right nozzle size for my plasma cutter?
Nozzle selection depends on your machine's amperage setting. For example, a nozzle with a smaller orifice is used for lower amperage (like 40A) and thinner metals, while a larger orifice is required for higher amperage (like 100A). Always match the nozzle to the amperage indicated on your torch system.
What material are these nozzles made from?
Our standard industrial nozzles are made from high-quality copper. Copper is used for its excellent electrical and thermal conductivity, providing a durable and cost-effective solution for most general cutting applications.
How often should a standard copper nozzle be replaced?
Nozzles are consumable items and should be replaced when the center orifice becomes enlarged or unsymmetrical. Signs of wear include a wider cutting kerf, excessive dross, or an unstable arc. Regular replacement ensures consistent cut quality and protects other torch components.
Are these nozzles compatible with different torch brands?
Yes, our nozzles are designed based on industry-standard dimensions, making them compatible with common torch series like the SL, PT, and iPT architectures. They are suitable for both manual and mechanized plasma cutting systems used in most fabrication shops.
How should I store and maintain my spare nozzles?
To prevent oxidation and contamination, store nozzles in a dry, clean environment. Before installation, ensure the nozzle is free of debris and that the torch head is clean. Proper gas pressure and dry air supply are the most important factors in maximizing the life of a standard copper nozzle.
