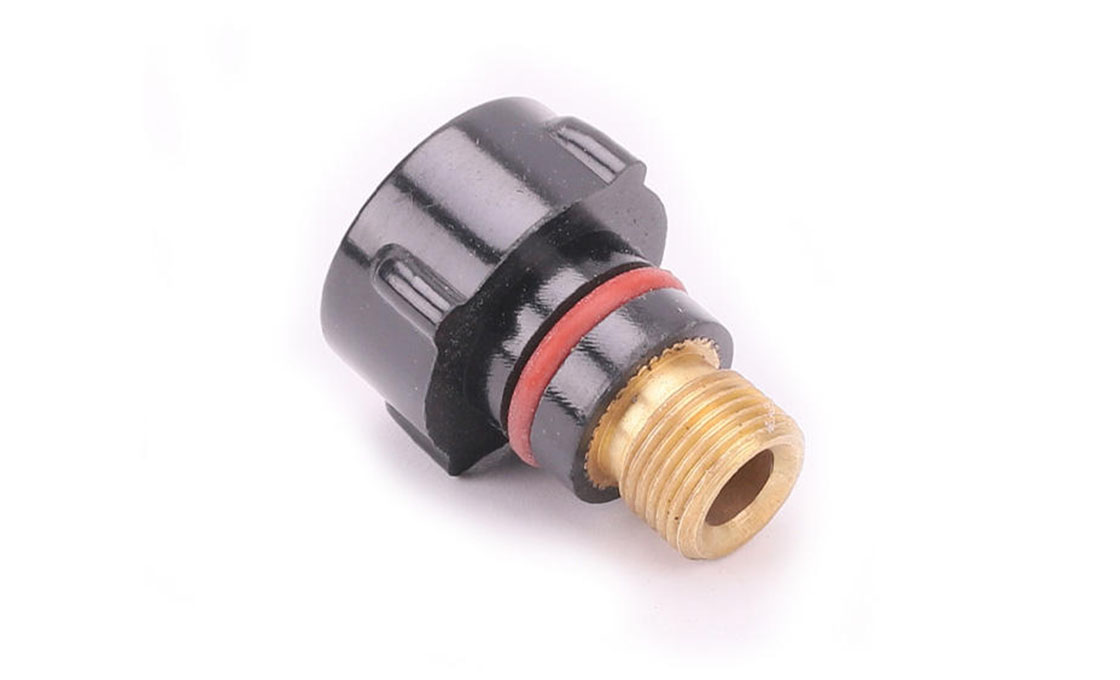

A TIG back cap is a critical sealing component designed to apply axial pressure to the collet, securing the tungsten electrode while maintaining gas integrity at the rear of the torch. Our back caps are manufactured from high-temperature resistant phenolic compounds or specialized industrial plastics, ensuring a reliable, airtight seal that prevents atmospheric contamination and maintains arc stability in demanding professional GTAW applications.
Engineered for universal compatibility, our production range covers the full spectrum of industry-standard torch architectures, including both small-scale series (9 and 20) and large-body industrial series (17, 18, and 26). These components are precision-molded to global standardized specifications, providing a seamless fit for both air-cooled and water-cooled torch systems, supporting a wide range of amperage requirements regardless of the original equipment brand.
We manufacture back caps in multiple lengths—including short, medium, and long configurations—to accommodate various tungsten lengths and workspace constraints. Our inventory includes all standard industrial part number families, such as the 41V and 57Y series. Designed for high-volume B2B supply, these components are available in bulk packaging to ensure consistent performance and operational efficiency in industrial fabrication and maintenance environments.
TIG Back Cap Manufacturer: Precision Engineered for Superior Welding
For over 20 years, RAX Industrial has been a leading integrated R&D and manufacturing hub, constantly improving and updating our welding and cutting products to meet your evolving needs. Our dedication to excellence ensures that every component, like our TIG Back Cap, stands out for quality and performance.
Precision-engineered from durable materials in our 18,000 m² facility, our back caps provide unmatched reliability. They play a vital role in maintaining a secure seal around the torch, which is crucial for preventing air and other contaminants from influencing the welding process. This ensures a clean and stable arc, fundamental for achieving flawless results.
Our extensive selection, developed by our team of 50+ specialists, ensures compatibility with a wide range of torches. This commitment to engineered quality is backed by our ISO 9001:2015 certified systems and 12-month warranty. When you choose RAX Industrial’s TIG Back Cap, you’re investing in reliability, performance, and top-notch craftsmanship supported by two decades of manufacturing expertise.
| Back Cap Length | Compatible Torch Series | Industry Part Numbers | Material | Amperage Suitability | Packaging Options | Cooling Compatibility |
|---|---|---|---|---|---|---|
| Short | 9, 20 Series | 41V33 | High-Temp Industrial Plastic | Up to 250A | Bulk / Industrial Multi-pack | Air & Water Cooled |
| Medium | 9, 20 Series | 41V35 | High-Temp Industrial Plastic | Up to 250A | Bulk / Industrial Multi-pack | Air & Water Cooled |
| Long | 9, 20, 25 Series | 41V24, 41V24L | High-Temp Industrial Plastic | Up to 250A | Bulk / Industrial Multi-pack | Air & Water Cooled |
| Short | 17, 18, 26 Series | 57Y04 | High-Temp Industrial Plastic | Up to 350A | Bulk / Industrial Multi-pack | Air & Water Cooled |
| Long | 17, 18, 26 Series | 57Y02 | High-Temp Industrial Plastic | Up to 350A | Bulk / Industrial Multi-pack | Air & Water Cooled |
Frequently Asked Questions
What is a TIG back cap and why is it essential?
A TIG back cap is a critical component that threads into the rear of the torch body to secure the tungsten electrode against the collet. It creates a high-pressure seal that prevents atmospheric contaminants from entering the torch, which is essential for maintaining arc stability, ensuring consistent weld quality, and protecting the internal torch components from oxidation.
Which TIG torch models are these back caps compatible with?
Our back caps are engineered for universal compatibility across all industry-standard TIG torch platforms. We produce specific models to fit both small-scale series (including 9 and 20 series) and large-scale industrial series (including 17, 18, and 26 series). These components are designed to serve as high-performance replacements for most global TIG welding brands, supporting both air-cooled and water-cooled configurations.
What length and size options are available for industrial use?
We manufacture back caps in multiple standard lengths to suit different tungsten electrode sizes and workspace constraints:
- Short (Button) Back Caps: Designed for extremely tight spaces where torch clearance is limited.
- Medium Back Caps: A balanced option for general-purpose welding with partially consumed electrodes.
- Long Back Caps: Allows the use of full-length tungsten electrodes to reduce waste and changeover time.
Each cap features precision-machined threading to ensure a secure, airtight fit with standard torch bodies.
What materials and quality standards ensure durability?
Our back caps are manufactured from high-grade, heat-resistant phenolic compounds or specialized industrial plastics. These materials are selected for their superior dielectric strength and resistance to thermal degradation. Our production facility is ISO 9001:2015 certified, ensuring that every batch meets rigorous dimensional tolerances and durability standards for heavy-duty industrial applications.
What are the key advantages for B2B and wholesale applications?
For industrial suppliers and fabrication shops, our back caps offer several operational benefits:
- Universal Fitment: Reduces inventory complexity by providing components that fit all major torch series.
- Superior Sealing: High-quality O-rings and precision molding prevent gas leakage and reduce consumable costs.
- Extended Service Life: Durable construction resists cracking and stripping, even in high-amperage, high-duty cycle environments.
How are the back caps packaged for professional supply?
As a manufacturer, we provide flexible packaging solutions to meet B2B requirements. While we offer individual and small-pack options, we specialize in bulk industrial packaging and wholesale quantities, ensuring a consistent supply chain for distributors and large-scale fabrication facilities.
What technical support and warranty do you provide?
RAX Industrial stands behind its manufacturing quality with a 12-month warranty against defects. We provide comprehensive technical support to help procurement teams select the correct series (such as the 41V or 57Y series) for their specific torch fleets, ensuring 100% compatibility and performance satisfaction.
