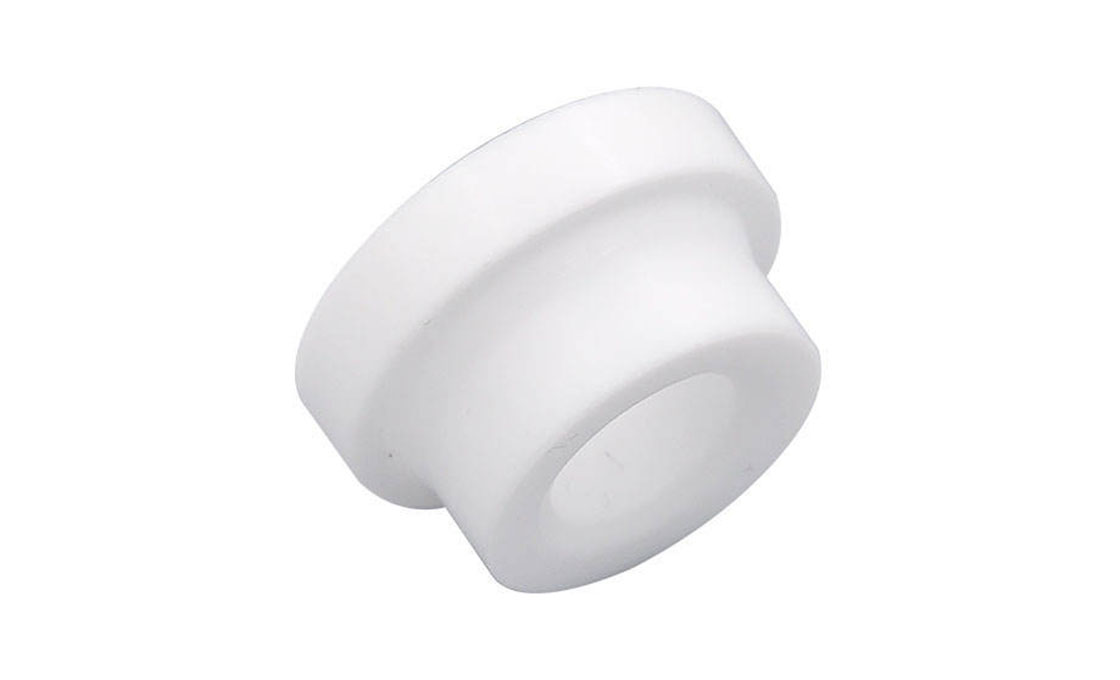

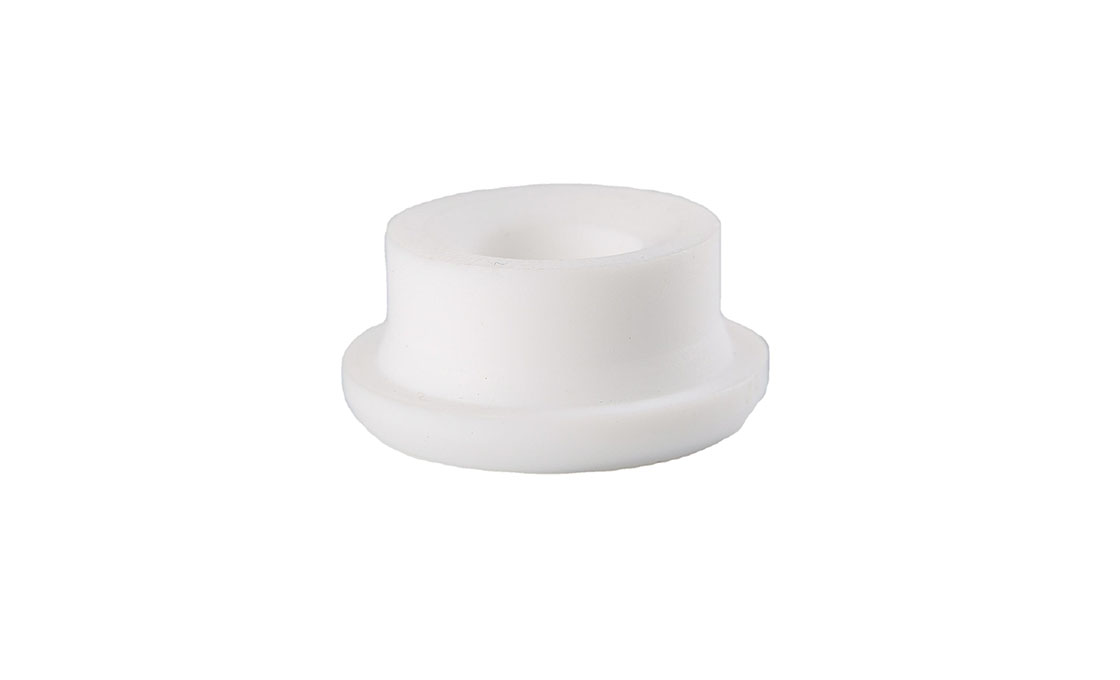

TIG insulators are essential safety and performance components designed to provide critical electrical insulation and gas seal integrity within the torch head. Our insulators are precision-molded from high-grade heat-resistant materials, such as PTFE (Teflon) and high-tear silicone rubber, ensuring they withstand the extreme thermal conditions of continuous industrial welding without deformation or dielectric breakdown.
As a specialized manufacturer, we produce a comprehensive range of insulators that meet or exceed OEM specifications for seamless compatibility with TIG 9, 20, 17, 18, and 26 series torches. Our production line covers all standard configurations, including large gas lens insulators (such as the 54N63) and standard collet body insulators (such as the 18CG and 54N01), ensuring a perfect fit and preventing shield gas leakage for a more stable welding arc.
Our insulators are engineered for durability and ease of installation, providing a reliable barrier that protects the torch body from high-frequency current and heat. By maintaining strict dimensional tolerances during the molding process, we ensure that each component integrates perfectly with ceramic nozzles and gas lenses, reducing downtime and extending the service life of the entire torch assembly in professional fabrication environments.
Expert TIG Insulator Wholesaler from RAX Industrial
Since 1999, RAX Industrial has brought innovative and industry-changing designs to the TIG welding community. As a leading manufacturer with an integrated R&D and manufacturing hub, our 18,000 m² facility is dedicated to producing the highest-quality TIG welding consumables, such as our precision-engineered TIG Insulator.
Our commitment to innovation is directly applied to products like the TIG Insulator, which is manufactured with hardened copper alloys. This material choice, driven by our team of 50+ R&D specialists, allows parts to last up to 30% longer than traditional soft copper TIG parts, ensuring superior durability and maximum efficiency for welders. We focus on designing products to help you weld more efficiently, and our premium TIG consumables are engineered to the same exacting specifications as leading industry standards.
For over 20 years, our family-owned company has pledged to deliver unrivaled service and quality, supporting a worldwide network across 40+ countries. We invite you to explore our expert-driven insights to enhance your skills and stay ahead with the latest in welding technology.

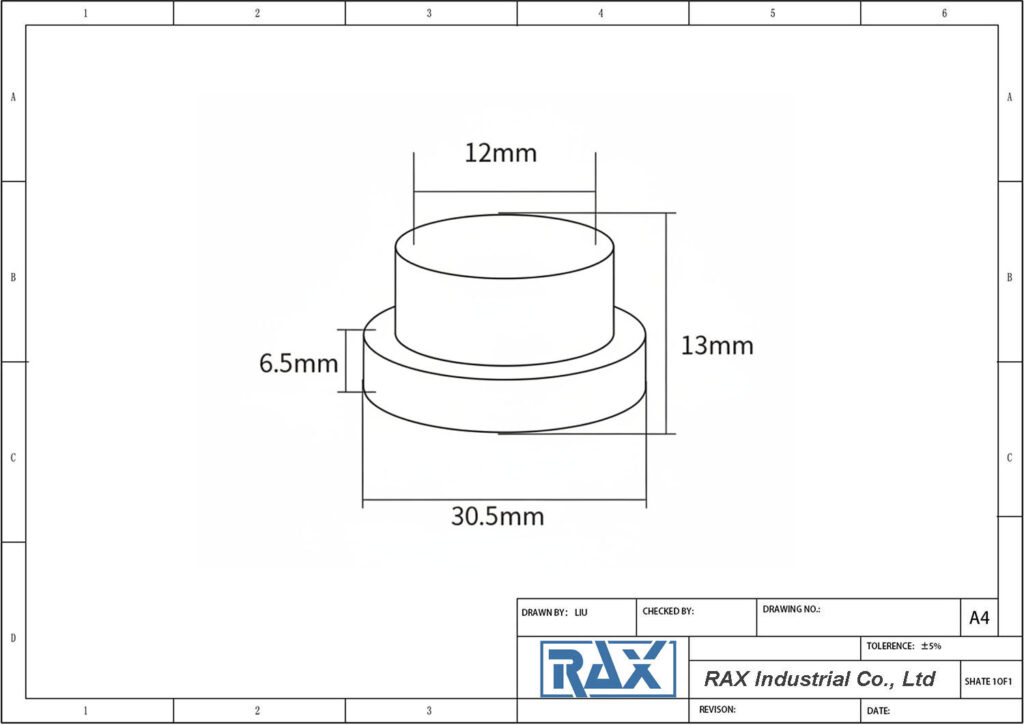

| Parameter | Specification |
|---|---|
| Product Type | Front-End TIG Welding Consumable / Gas Lens Insulator |
| Primary Function | Provides electrical insulation and maintains gas flow integrity within the gas lens assembly. |
| Design Compatibility | Weldcraft-style torch designs (e.g., compatible with WP-17, WP-18, WP-26 torches). |
| Primary Material | Hardened copper alloy (incorporating materials like beryllium for enhanced durability). |
| Key Feature | Manufactured to original equipment manufacturer (OEM) specification for proper fit and function. |
| Example Part Number | 54N63 (for large gas lens configuration) |
| Variant Part Number | 54N01 |
| Associated Innovation | Supports use with improved insulation materials, such as silicone rubber, for electrical isolation and thermal management. |
| Typical Service Life | Extended service life compared to traditional soft copper variants. |
Plasma Cutting Torch
Gas Cutting Torch
Robot Welding Torch
Frequently Asked Questions
What is a TIG torch insulator and what is its primary function?
A TIG insulator is a critical component in TIG welding torches, typically made from hardened copper alloys for high-temperature durability. Its primary functions are:
- Electrical Isolation & Safety: Prevents stray currents to ensure operator safety and arc stability.
- Thermal Protection: Shields torch components from heat damage.
- Gas Flow Management: Helps direct a stable, laminar flow of shielding gas for consistent weld quality. This is enhanced in gas lens insulators, which provide superior gas coverage, allow for extended electrode stick-out, and offer greater operational flexibility in challenging conditions. Larger diameter variants are specifically beneficial for big weld joints or high-amperage applications.
Which TIG torch models are your insulators compatible with?
Our consumables are manufactured to OEM specifications for a wide range of industry-standard configurations. This includes compatibility with:
- Weldcraft-style parts and classic torch models (e.g., WP-17, WP-18, WP-20, WP-24, WP-26).
- CK-style and other OEM-compatible designs.
- Both air-cooled and water-cooled torch systems.
For specific model fitment or to choose the correct insulator size and type for your torch and cup setup, we recommend consulting your torch manual or contacting our technical support.
How should I install and maintain a TIG torch insulator?
Proper handling is key to performance and longevity.
- Installation: For front-end assembly, insert the collet and tungsten, place the insulator over the collet body, and screw on the nozzle. For a torch neck insulator, align and apply firm, even pressure to seat it, creating a secure seal. Always avoid overtightening.
- Preventing Failure: Common causes of failure include overtightening, thermal shock, physical impact, or using incorrect sizes. To prevent this, avoid overtightening nozzles, allow the torch to cool gradually, and use components rated for your application's amperage.
- Replacement: Replace the insulator if it is cracked, chipped, shows electrical tracking (burn marks), or no longer fits snugly. Proper water cooling and correct usage will extend the life of all front-end consumables.
What is your product quality and what certifications do you hold?
We manufacture parts to the same specification as original equipment manufacturers (OEM), ensuring high quality. Our company holds ISO 9001:2015, CE, and RoHS certifications.
What are your commercial terms for orders and support?
- Warranty & Lead Time: We offer a 12-month warranty on TIG welding consumables, with an agile supply chain supporting lead times of approximately 15 days.
- Packaging: Products are available individually (EA), in multi-packs, or as part of consumable kits for convenience.
- Customization: As an integrated R&D and manufacturing hub, we provide comprehensive OEM/ODM services, including private labeling, component modification, and free prototyping.
How can I get technical support or place an order?
RAX Industrial provides technical support for part selection. We serve a global network of distributors; please contact us to find a distributor near you or for direct support with your specific welding setup.
