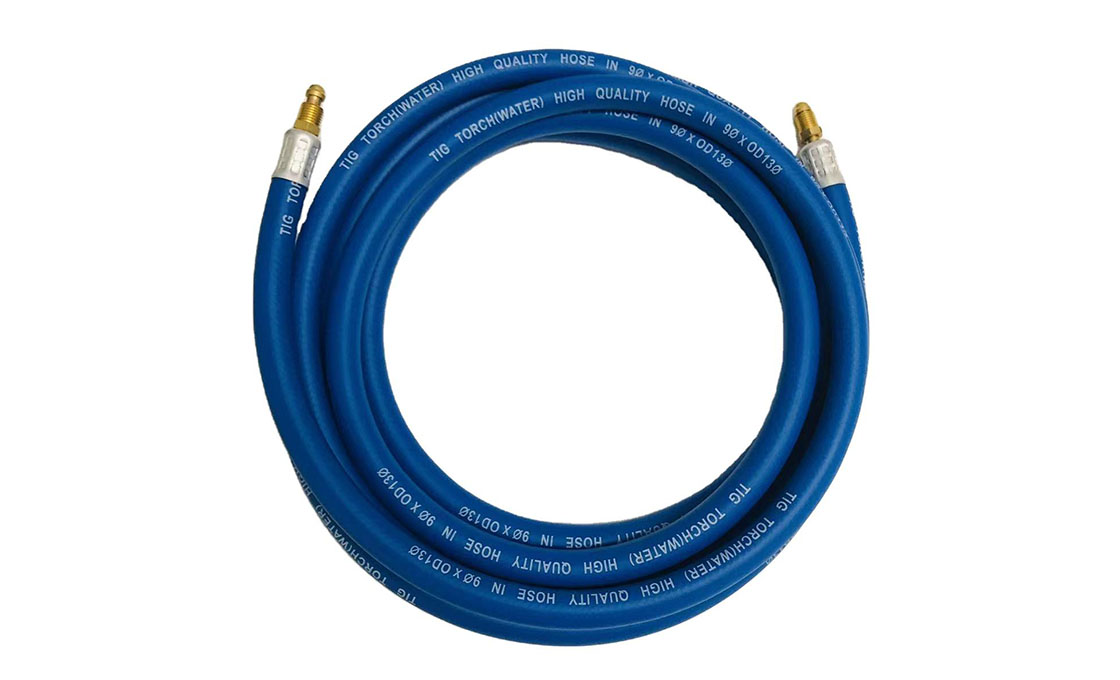

TIG torch leads and cable assemblies are high-performance delivery systems engineered to provide electrical power, shielding gas, and coolant to the welding torch. Designed as both primary equipment and durable replacements, these assemblies are available for both air-cooled and water-cooled Tungsten Inert Gas (TIG) systems, ensuring consistent arc stability and thermal management during intensive industrial operations.
Our lead sets utilize premium silicone rubber insulation and high-flex braided cables, offering superior dielectric protection and exceptional maneuverability. This high-flexibility design reduces torque on the welder’s wrist, enabling precise torch positioning for intricate welding tasks while maintaining long-term durability in demanding shop environments.

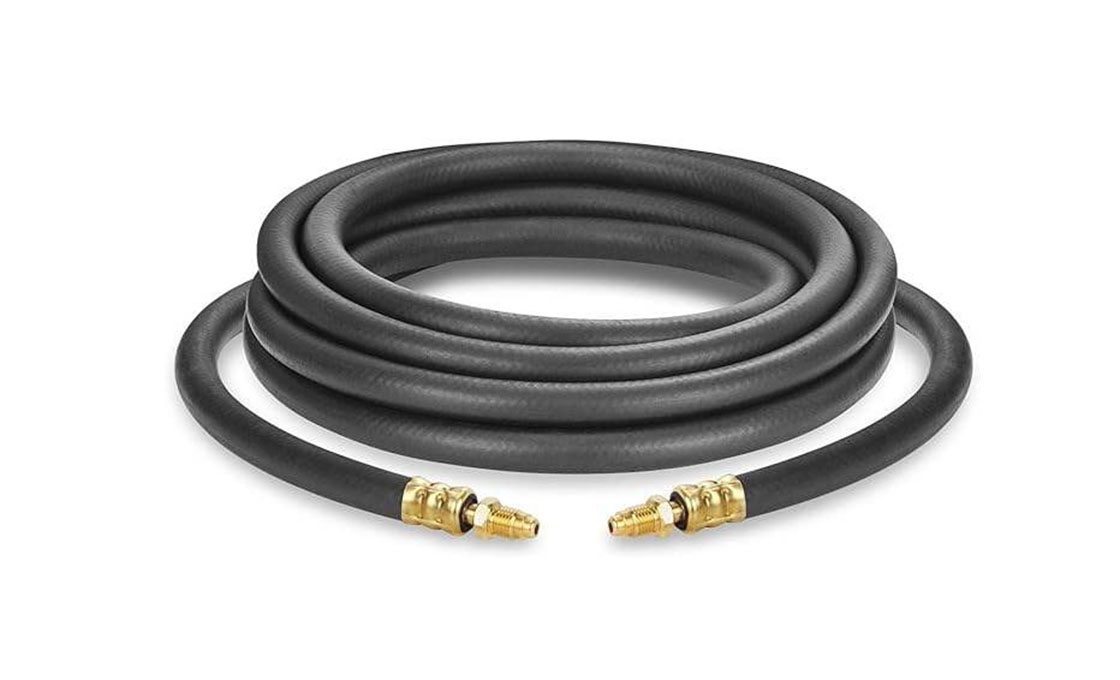

We offer a comprehensive range of configurations, including ultra-flexible braided hoses and heavy-duty rubber-jacketed cables tailored for various cooling requirements. Our production covers compatibility for all industry-standard torch series, including 9, 17, 20, 26, and heavy-duty 300-amp models. To ensure seamless integration with global power sources, we provide diverse connector options such as 7/8″-14RH, 5/8″-18RH, and universal lug/bolt-on fittings.
To further extend service life, we provide additional protective solutions including leather or nylon zippered cable covers in multiple lengths. Our accessory line also includes high-conductivity hose couplers and gas-efficient component kits designed to minimize inert gas consumption and optimize operational efficiency for professional fabrication projects.
Expert TIG Torch Lead Supplier – RAX Industrial
RAX Industrial, founded in 1999, is an integrated manufacturer of welding equipment with over twenty years of expertise and a focus on high-quality innovation. Our journey is built on a deep understanding of the TIG welding process, where precision and reliability are paramount. This historical commitment directly informs the engineering of every component we produce, including our TIG torch leads.
Our dedicated team of over 50 R&D specialists and engineers drives continuous improvement, ensuring our designs meet the highest technical demands. This focused innovation is applied to crafting TIG torch leads that are characterized by their reliability and seamless integration. Supported by an 18,000 m² automated production facility, we maintain rigorous quality control from material analysis to final assembly, guaranteeing that each lead offers consistent performance and durability for professional welders worldwide.
As a company where quality and innovation never end, we are committed to setting a standard of trustworthiness in every product. Our TIG torch leads embody this philosophy, designed to be the dependable link in your welding process. We invite you to explore the engineering expertise behind our solutions and welcome ongoing dialogue to meet your specific application needs.
| Parameter Category | Specification / Compatibility |
|---|---|
| Primary Function | Integrated assembly delivering electrical power, shielding gas, and coolant to the TIG torch head. |
| Cooling Method Compatibility | Universal compatibility with Air-cooled and Water-cooled TIG systems. |
| Typical Assembly Components | High-conductivity power cable, reinforced argon/gas line, and high-pressure water hoses. |
| Cable/Hose Construction | Standard Industrial Rubber, Ultra-Flexible Braided, and High-Flex Silicone options. |
| Compatible Torch Series | Industry-standard series: 9, 17, 20, 24, 26, 130, 150, 230, and 300. |
| Machine-Side Connectors | 7/8″-14RH, 5/8″x18RH, Lug/Bolt-On, and Universal Quick-Connect fittings. |
| Core Material Features | Premium silicone rubber insulation for superior dielectric strength and thermal resistance. |
| Performance Benefits | Lightweight, fatigue-reducing designs with optimized flow rates for stable arc performance. |

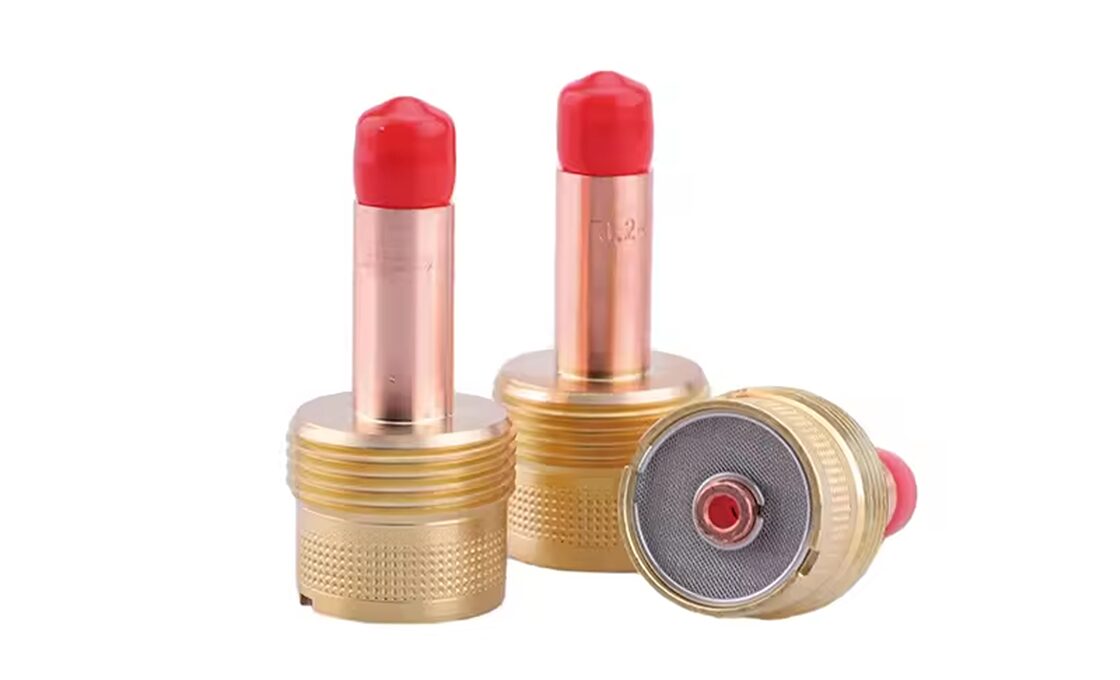

| Available Accessories | Protective leather/nylon hose covers, power/gas line extensions, female-to-female couplers, and gas-efficient lens kits. |
Plasma Cutting Torch
Gas Cutting Torch
Robot Welding Torch
Frequently Asked Questions
What is a TIG torch lead and what does it do?
A TIG torch lead is the cable assembly that carries welding current, shielding gas, and sometimes cooling water from the power source to the torch, enabling stable arc performance and flexible positioning around the workpiece.
How do I choose the right TIG torch lead for my welder?
Select a TIG torch lead based on amperage rating, air- or water-cooled design, length, and connector type so it matches your power source sockets, gas fittings, and cooling system while providing enough reach for your work area.
What is the difference between air-cooled and water-cooled TIG torch leads?
Air-cooled TIG torch leads are simpler and lighter but limited to lower amperage, while water-cooled leads contain additional hoses to remove heat, allowing higher current welding with a smaller, cooler torch head for extended duty cycles.
When should a TIG torch lead be replaced?
Replace a TIG torch lead if you see cracked insulation, damaged hoses, loose connectors, excessive stiffness, or intermittent electrical or gas faults that persist after checking the torch head and consumables, to avoid safety and quality issues.
How long should a TIG torch lead be for comfortable welding?
Lead length depends on your workspace, but many welders prefer 4–8 m (about 13–26 ft) to comfortably reach the work area without dragging the power source or creating excessive cable loops that can snag or overheat.
How do I correctly connect and route a TIG torch lead?
Connect the TIG torch lead to the correct output terminal, gas outlet, and cooler ports as specified in the welder manual, then route the lead with gentle bends, avoiding sharp edges, hot surfaces, and tight coils that restrict gas or water flow.
