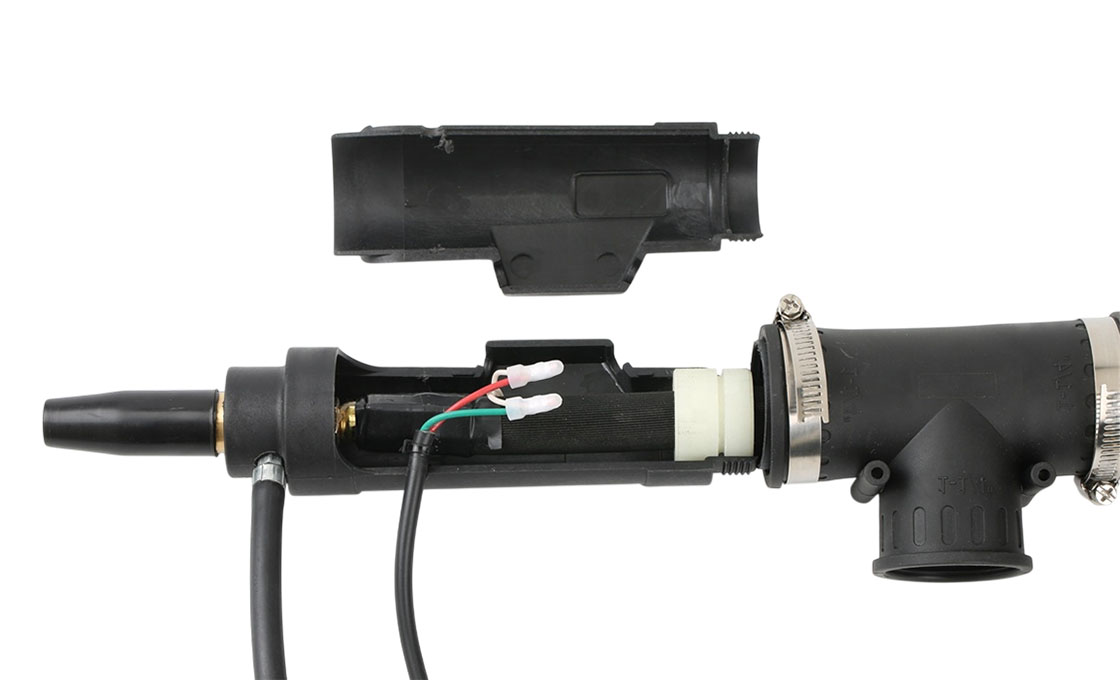

Fume extraction guns capture welding fumes and particulates directly at the arc, removing contaminants from the welder’s breathing zone before they disperse. These tools incorporate a vacuum chamber within the handle that draws fumes through a hose to an external filtration system. This source capture method helps companies meet Occupational Safety and Health Administration (OSHA) exposure limits for welding fumes and hexavalent chromium while creating safer work conditions.
Design features support welder comfort during extended use, including ergonomic handles, vacuum hose swivels that reduce wrist fatigue, and lightweight cable assemblies with ball-joint flexibility. Models typically offer adjustable extraction control regulators, allowing operators to balance suction levels with shielding gas coverage to prevent weld defects like porosity. Common configurations include amperage ratings from 300 to 600 amps with duty cycles of 60%, and neck angles of 45 or 60 degrees for improved joint access.
These guns support Metal Inert Gas (MIG) welding processes with both solid and flux-cored wires. They prove particularly effective for confined space work and industries like shipbuilding and heavy equipment manufacturing, especially when welding stainless steel. Routine maintenance includes checking electrical connections, inspecting consumables for spatter build-up, examining vacuum hoses for damage, and clearing liners with compressed air during wire changes.
Protect Welders and Boost Efficiency with RAX Fume Extraction Guns
At RAX Industrial, we have dedicated ourselves, founded in 1999 with over 20 years of experience, to advancing welding productivity and performance through integrated R&D and manufacturing. Our 18,000 m² facility, powered by a team of 50+ specialists and advanced automation, is built to engineer solutions that set new standards for safety and efficiency. This focused expertise is directly applied to our fume extraction guns, which capture welding fumes and particulates right at the source, ensuring compliance with OSHA requirements for cleaner, healthier work environments.
Our Fume Extraction Guns integrate seamlessly into MIG welding processes, offering ergonomic handles, lightweight designs, and adjustable extraction controls for optimal performance. Models range from 300 to 600 amps with 60% duty cycles, featuring vacuum hose swivels that reduce operator fatigue during extended use. These guns are particularly effective in confined-space applications like shipbuilding and heavy equipment manufacturing, where stainless steel welding poses significant health risks.
Join the companies that have chosen RAX Industrial to protect their workforce. Contact us to discuss how our fume extraction solutions can improve air quality and welding efficiency at your facility.
| Parameter | Specification / Value |
|---|---|
| General Specifications | |
| Product Type | Fume Extraction MIG (GMAW) Gun |
| Primary Function | Source-capture of welding fumes and particulates |
| Compatible Processes | MIG (GMAW) |
| Compatible Welding Wires | Solid wire, Flux-cored wire (FCAW) |
| Typical Amperage Range | 300 – 600 A |
| Available Neck Angles | 45°, 60° |
| Handle Feature | Vacuum hose swivel on rear for reduced wrist fatigue |
| Cable Assembly | Lightweight design to minimize operator fatigue |
| Performance & Ratings | |
| Fume Capture Efficiency (Claimed) | Up to 95% at source |
| Key Regulatory Compliance | OSHA exposure limits, ACGIH TLV for Manganese/Hexavalent Chromium |
| Duty Cycle (with Mixed Gases) | 300 A @ 60%, 400 A @ 60%, 500 A @ 60% |
| Airflow Control | Adjustable extraction control (regulator/slide) to balance suction & shielding gas |
| Consumables & Compatibility | |

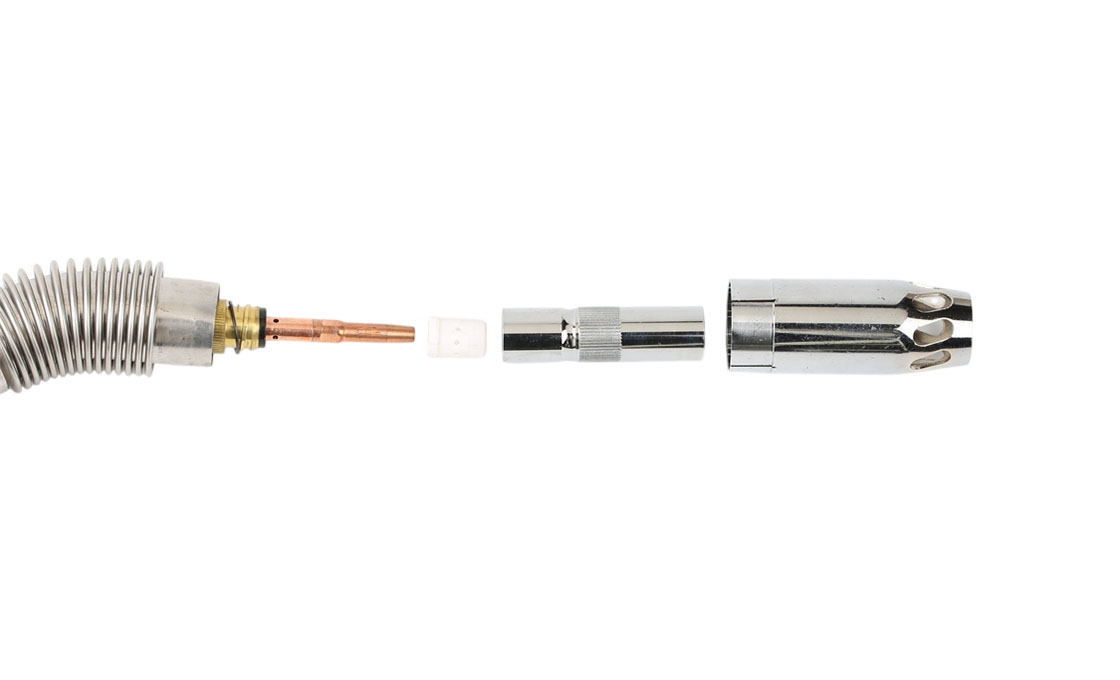

| Consumable Systems | Compatible with common industry systems (e.g., AccuLock S, Centerfire, Tough Lock) |
| Interchangeable Nozzle Shrouds | Multiple lengths (e.g., Standard/Long, Short) for access vs. capture balance |
| Contact Tip Wire Range | 0.023 in (0.6 mm) to 3/32 in (2.4 mm) |
| Liner Compatibility | Front-load and rear-load liners for various wire sizes and lengths (10-25 ft) |
| Vacuum System Compatibility | Compatible with high-vacuum portable and centralized filtration systems |
| Maintenance Guidelines | |
| Electrical Connections | Check regularly for tightness to ensure good current flow. |
| Nozzle & Contact Tip | Inspect frequently for spatter build-up; clean or replace to prevent weld defects. |
| Vacuum Hose | Inspect regularly for cuts/kinks to maintain suction; replace if damaged. |
| Liner | Clear debris with compressed air during wire changeovers to prevent feeding issues. |
Frequently Asked Questions
What is a fume extraction gun and how does it work?
A fume extraction gun is a specialized welding tool designed for MIG (GMAW) processes that captures welding fumes directly at the source—over and around the weld pool. It operates through a vacuum chamber integrated into the handle that suctions harmful particles through a vacuum hose connected to a compatible filtration system. This mass flow process removes contaminants before they enter the welder's breathing zone, creating a cleaner and safer work environment.
What welding processes and wire types are compatible with fume extraction guns?
Fume extraction guns are engineered for MIG (GMAW) welding and support both solid welding wire and flux-cored wires. This versatility makes them suitable for welding applications across mild steel, carbon steel, and stainless steel in industries such as manufacturing, fabrication, automotive, and shipbuilding.
What amperage ratings and models are available?
Fume extraction guns are available in multiple amperage configurations to meet varying production demands. Common models include 300 amp, 400 amp, and 500 amp versions, typically rated at 60% duty cycle when using mixed gases. High-amperage applications can be accommodated with models rated up to 600 amps.
What ergonomic features reduce operator fatigue during extended welding shifts?
Our fume extraction guns incorporate several ergonomic design elements to enhance welder comfort and minimize fatigue during long shifts in demanding environments. Key features include:
- A vacuum hose swivel or durable ball-joint design at the rear of the handle for improved flexibility and reduced wrist strain
- Lightweight cable assembly for easier maneuverability
- Rubberized grip for enhanced control and comfort
- Adjustable nozzle shrouds on select models for optimal weld access and visibility
These design elements work together to provide greater flexibility during operation in heavy fabrication environments like shipyards and automotive plants.
How should I maintain my fume extraction gun for optimal performance?
Regular preventive maintenance is essential for maximizing equipment uptime and consistent weld quality. Recommended practices include:
- Checking electrical connections regularly to ensure proper current flow
- Inspecting and cleaning contact tips and nozzles frequently to remove spatter build-up, replacing them as needed
- Examining the vacuum hose for cuts or kinks that could reduce suction efficiency
- Visually inspecting the handle and trigger for signs of damage
- Using compressed air to clear debris from the liner during wire changeovers to prevent feeding issues
- Tracking consumable usage and replacing liners and components timely to prevent unplanned downtime
We provide comprehensive support including a 12-month warranty and 24/7 technical support to assist with maintenance needs.
How does using a fume extraction gun help with safety compliance and workplace health?
Our fume extraction guns are engineered to capture up to 95% of weld fumes at the source, significantly reducing worker exposure to hazardous contaminants such as hexavalent chromium and manganese. This helps maintain compliance with OSHA regulations and ACGIH threshold limit values, minimizes health risks including metal fume fever and respiratory issues, and creates a cleaner, more compliant work environment. Enhanced workplace safety also aids in attracting and retaining skilled welding operators.
What technical data and certifications validate the gun's performance and safety?
We provide detailed technical data sheets (TDS) and performance test reports to support specification and engineering decisions. Our products hold certifications including CE, RoHS, and SGS, validating both performance and safety standards for industrial applications.
Can the fume extraction gun be customized for specific welding machine models and production requirements?
Yes. RAX Industrial offers extensive OEM/ODM customization through agile engineering support backed by 20+ years of manufacturing experience. Our 50+ engineering specialists and 20+ R&D engineers provide free industrial design and prototyping based on your application needs.
Customization services include component modifications, aesthetic private labeling, and development of application-specific prototypes. The guns are precision-engineered for universal compatibility with major brands such as Binzel, Tweco, Lincoln, Bernard, Miller, and Esab, ensuring seamless integration into existing systems. With an efficient supply chain delivering 15-day lead times, we support rapid development for fast time-to-market.
