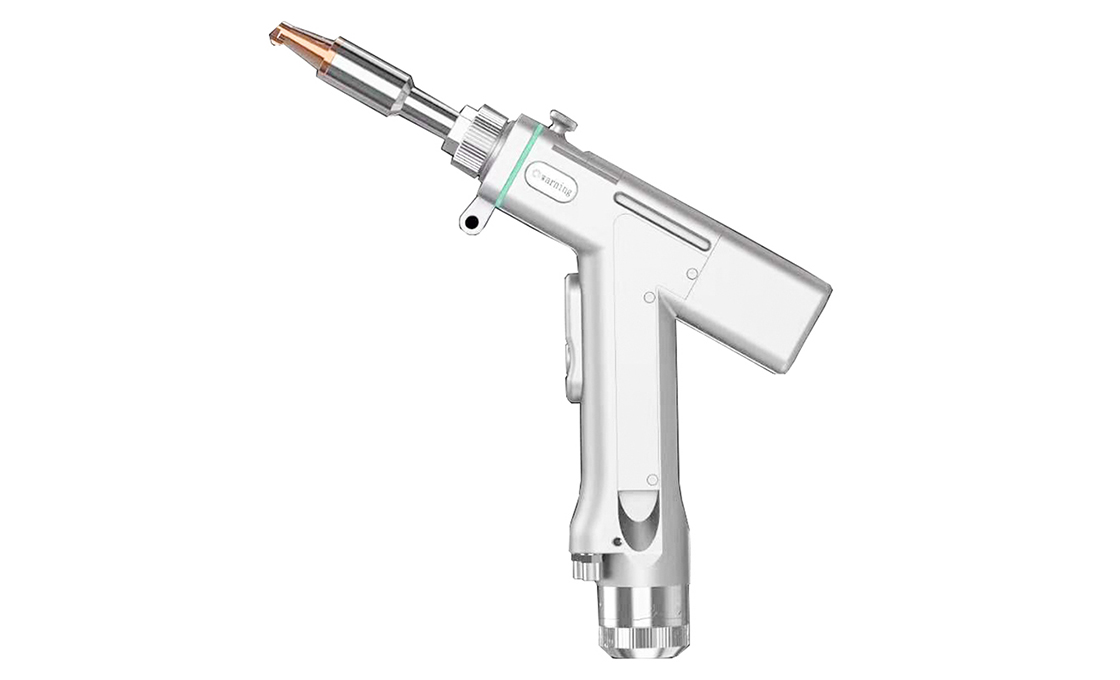

Handheld laser welding torches use fiber laser technology to join metal components by focusing a high-intensity beam into a small spot, enabling precise and deep welds at high speed. These portable devices weld metal plates and tubes, providing a flexible solution for industrial applications across automotive, aerospace, medical equipment, electronics, shipbuilding, and structural steelwork.
The torches deliver welding speeds two to ten times faster than traditional Tungsten Inert Gas (TIG) or argon arc methods, with energy savings of 80 to 90 percent. They produce smooth weld seams requiring minimal grinding, smaller heat-affected zones, reduced workpiece deformation, and less spatter and fumes. Operation requires only simple training, with user-friendly multilingual interfaces supporting rapid operator onboarding.
Models range from 800 to 6000 watts, with air-cooled and water-cooled configurations. Welding gun weights typically stay under 0.7 kilograms. The torches handle stainless steel, carbon steel, aluminum, copper, titanium, and their alloys, including dissimilar metals and galvanized steels without coating removal. Penetration depths reach approximately 8.5 millimeters in stainless steel depending on power output.
Key features include wobble welding with adjustable parameters, continuous wave and pulsed modes for heat control, and preset welding parameters for common materials. Wire feeding options enable gap filling and material deposition. Safety features include contact sensors requiring part contact before firing, key switches, emergency stops, and laser interlocks. Some units integrate laser cleaning functionality for pre-weld and post-weld surface preparation.
Premier Manufacturer of Handheld Laser Welding Torches
Founded in 1999 with over 20 years of experience in welding technology, RAX Industrial stands as a premier integrated R&D and manufacturing hub. This extensive experience is directly channeled into our precision-engineered Handheld Laser Welding Torch, ensuring unparalleled accuracy and reliability for welding even the most delicate materials. Our dedicated team of 50+ R&D specialists and advanced automation capabilities guarantee that every torch is built with the latest technological advancements, delivering stable, high-speed performance with minimal power consumption.
Our commitment to quality is fundamental. We operate from an 18,000 m² facility, leveraging a robust production capacity and an agile supply chain to offer reliable, high-performance solutions. Our Handheld Laser Welding Torch embodies this commitment, crafted from durable materials for exceptional longevity and supported by comprehensive international certifications, including ISO 9001:2015, CE, and SGS. Trust in our global support network and 24/7 after-sales service to empower your operations with a versatile, efficient, and cost-effective welding solution.
| Parameter | Specification |
|---|---|
| Laser Source | |
| Laser Type | Continuous Wave (CW) Fiber Laser |
| Laser Wavelength | 1080 ± 10 nm |
| Laser Power | 800 W to 6000 W (Common configurations: 1500W, 2000W, 3000W) |
| Welding Performance | |
| Maximum Welding Thickness (Stainless Steel) | Up to approx. 8.5 mm |
| Welding Speed | 2 to 10 times faster than traditional TIG/MIG welding |
| Welding Gap Tolerance | ≤ 0.5 mm |
| Filler Wire Diameter | 0.8 mm to 2.0 mm (standard range) |
| System & Operation | |

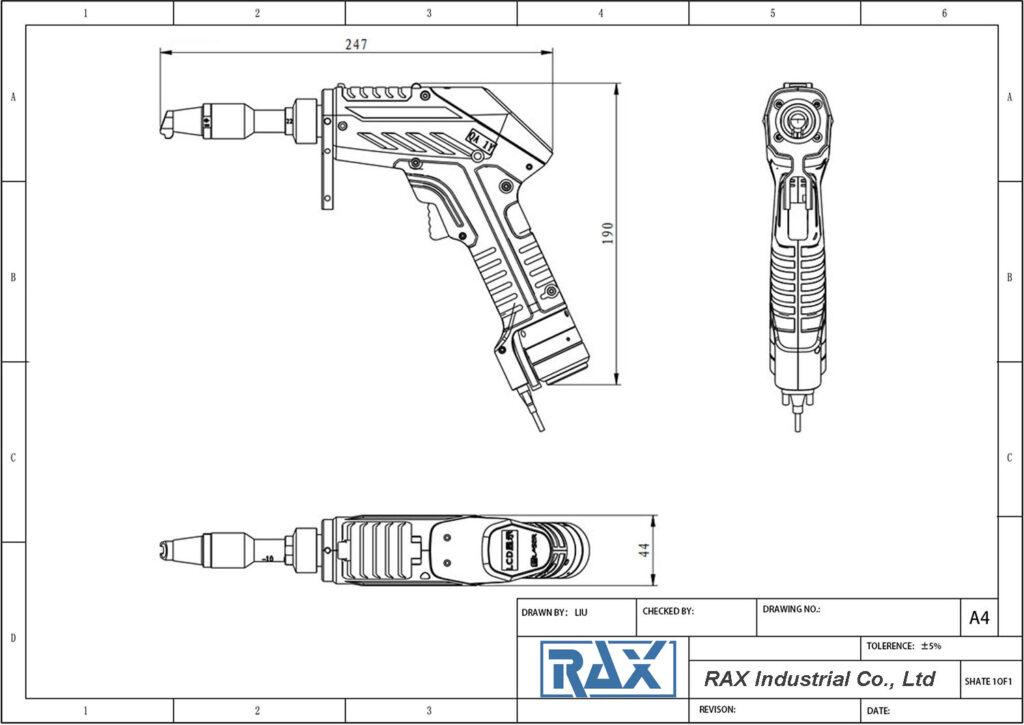

| Weight of Welding Gun | < 0.7 kg |
| Welding Gun Cable Length | 10 m (standard) |
| Cooling System | Air-cooled or Water-cooled |
| Control Interface | Touch screen with multi-language support (e.g., English, Chinese, Spanish, etc.) |
| Preset Welding Parameters | Up to 100 sets for common materials & thicknesses |
| Welding Modes & Features | |
| Welding Modes | Continuous Wave, Pulsed, Spot, Seam |
| Wobble Welding | Yes, with adjustable width (e.g., up to 4.0 mm / 0.16″) and speed |
| Wire Feeding | Yes, supports single and dual MIG wire feed |
| Focal Position Adjustment | Yes, for precise spot size control |
| Integrated Cleaning Function | Pre-weld & Post-weld laser cleaning (for localized rust, oil, soot removal) |
| Physical Specifications | |
| Net Weight of Machine (Typical) | 28 kg to 265 kg (varies by power & cooling system) |
| Overall Dimensions (L x W x H) | Approx. 576 x 265 x 425 mm to 1210 x 715 x 1080 mm (varies by model) |
| Power & Safety | |
| Input Voltage / Frequency | 220V ±10% / 50-60 Hz or 380V / 50-60 Hz |
| Key Safety Features | Contact sensor (requires part contact to fire), Emergency stop button, Key switch, Laser area interlock, Safety protective shell |
| Required PPE | Laser safety goggles/helmet (OD 6+ for 1070-1080 nm), gloves, ventilation |
| Certifications & Standards | CE, FDA, SGS |
Frequently Asked Questions
What is handheld laser welding and how does it work?
Handheld laser welding uses a highly focused beam of light to join metal components. The fiber laser produces a high-intensity beam that is collimated and concentrated into a very small spot, creating a molten pool that solidifies to form a strong, deep weld. This high-precision technology creates strong joints with minimal heat input and distortion, offering exceptional control over the welding process.
What are the primary advantages over conventional welding methods?
Handheld laser welding offers significant improvements in efficiency and quality compared to traditional arc welding methods like TIG or MIG:
- Speed and Productivity: Welding is 2 to 10 times faster than traditional methods, drastically reducing production time.
- Superior Weld Quality: The technology delivers smooth, consistent, clean weld seams with minimal spatter, often eliminating the need for post-weld grinding or polishing.
- Reduced Heat and Distortion: Concentrated laser energy minimizes the heat-affected zone, resulting in virtually zero part deformation.
- Ease of Use: The process is simple to operate and does not require highly skilled welders, enabling faster onboarding and consistent results.
- Versatility and Clean Operation: Works on a wide range of metals with fewer consumables, less fumes, and a more environmentally friendly profile.
These benefits translate to lower total cost per weld and higher quality finished products.
What materials and thicknesses can be welded?
RAX Industrial's handheld laser welding torch can weld a wide range of metals including stainless steel, carbon steel, aluminum, copper, titanium, galvanized steel, and various alloys. Welding capability depends on the laser power—for example, a 2000W unit can weld up to 4mm stainless steel. Models can weld steel from thin gauge up to several millimeters thick, with higher power enabling deeper penetration and the welding of thicker materials.
What technical specifications and system features should I evaluate?
When selecting a handheld laser welding system, key technical aspects include:
- Laser Power: Systems are commonly available in power ratings such as 1000W, 1500W, and 2000W, which directly affect penetration depth.
- Beam and Weld Control: Adjustable beam settings with spot widths from 0.2mm to 5mm, plus wobble function to bridge wider gaps and create stronger welds. Operators can digitally control power, speed, frequency, and beam oscillation for perfect adaptation to material thickness and joint type.
- Cooling System: Dual-temperature water chiller is typically integrated for stable, continuous operation, preventing overheating.
- Ergonomic Design: Lightweight torch designed for operator comfort during extended use.
- System Integration: Complete system includes digital touch-screen control with multiple language support, built-in welding presets, wire feeder, and integrated safety locks for comprehensive operation management.
This programmability ensures weld consistency and significantly reduces common welding defects like undercut, low penetration, pores, and cracks, leading to stronger, more corrosion-resistant joints that are highly repeatable across production runs.
Is this equipment difficult to learn and operate?
No, handheld laser welding is generally easier to learn than traditional MIG or TIG welding. The system is designed for user-friendly operation with intuitive touchscreen controls, multiple language support, and built-in welding presets for common materials and thicknesses. This allows both novice welders and experienced professionals to start producing high-quality, consistent welds quickly, often on their first day of use.
How safe is handheld laser welding to operate?
Handheld laser welding is safe when proper precautions are taken. The system incorporates multiple layers of safety to prevent accidental laser emission:
- Dual-Activation Safety: Laser emission typically requires two conditions: a proximity sensor must confirm the torch is adjacent to the workpiece, and a pressure sensor on the nozzle must detect sufficient contact force.
- Integrated Safety Lockouts: Includes key switches, emergency stop buttons, and safety interlocks. Systems can require operator authentication after safety training, and a pre-operation checklist on the control interface must be acknowledged before welding can begin.
- Protective Hardware: The torch includes protective lenses to shield the focusing optics from contamination and may feature a laser light guard to block reflected light.
Operators and bystanders must wear appropriate laser safety goggles or helmets (rated OD 6 for 1070-1080 nm wavelength) and standard welding PPE. Welding should be performed in a controlled area, such as within a laser welding booth or behind safety curtains, to contain the laser beam.
For which industries and applications is this technology most suitable?
This equipment is highly versatile and is widely adopted across numerous industries due to its ability to weld various metals effectively:
- Metal Fabrication & Hardware: Ideal for kitchenware, door handles, locks, and light fixtures.
- Automotive & Transportation: Suitable for component repair, bodywork, and assembly of metal parts.
- Construction & Building Materials: Used for structural elements, signage, and decorative metalwork.
- General Manufacturing: Effective for producing and repairing metal products, electrical enclosures, and piping systems where precision and speed are critical.
The technology is particularly beneficial for applications requiring clean, distortion-free joins on thin to medium gauge metals. Beyond welding, the system can often handle light cutting and cleaning tasks, making it a multi-functional tool for metal workshops.
Do you offer OEM/ODM customization and private labeling for welding machine manufacturers?
Yes, we provide comprehensive OEM and ODM customization services tailored to the specific needs of welding machine manufacturers. Our integrated R&D and manufacturing hub offers free industrial design and prototyping based on your application requirements. Our scope includes full private labeling, aesthetics customization, and component modification to ensure seamless integration with your systems. Our agile supply chain supports rapid, market-ready development, and all products are backed by international certifications including ISO 9001:2015, CE, and RoHS to meet global compliance standards.
What durability, technical support, and supply capabilities do you offer for industrial operations?
Our handheld laser welding torches are engineered for maximum durability in demanding industrial environments like shipyards and automotive plants. They are built with high-quality materials and feature universal compatibility with major brand systems.
To maximize equipment uptime, we provide 24/7 technical support with a 12-hour response guarantee. Our team of over 50 specialists ensures access to advanced technical data and performance reports. We operate with a highly efficient supply chain featuring 15-day standard lead times to support rapid inventory turnover. Our extensive annual production capacity of over 270,000 welding torch sets guarantees long-term supply stability for critical operations.
Products are backed by a 12-month warranty. For distributors and partners, we offer competitive tiered pricing structures and comprehensive support, including marketing materials.
