A spool gun is a welding tool for semi-automatic gas shielded arc welding processes such as Metal Inert Gas (MIG), particularly for handling softer wires like aluminum. It incorporates a built-in wire spool and feeder to shorten the wire travel distance, providing consistent wire speed and reducing common issues such as bead formation and bird-nesting during aluminum MIG welding. This approach offers a fast and cost-effective method for aluminum welding.

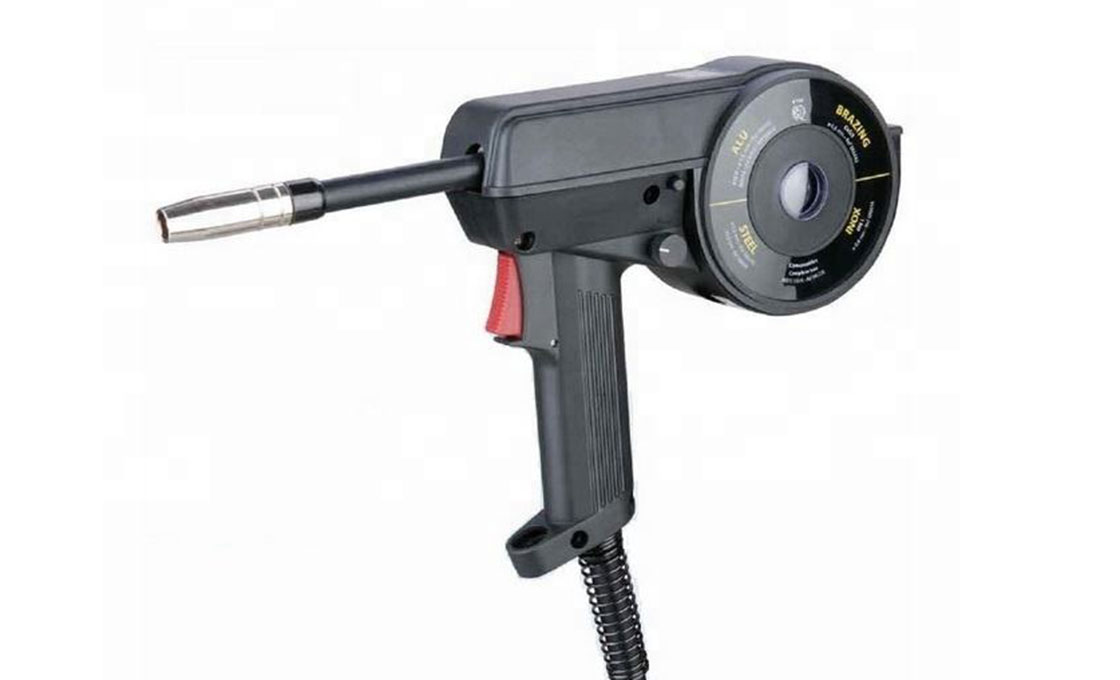

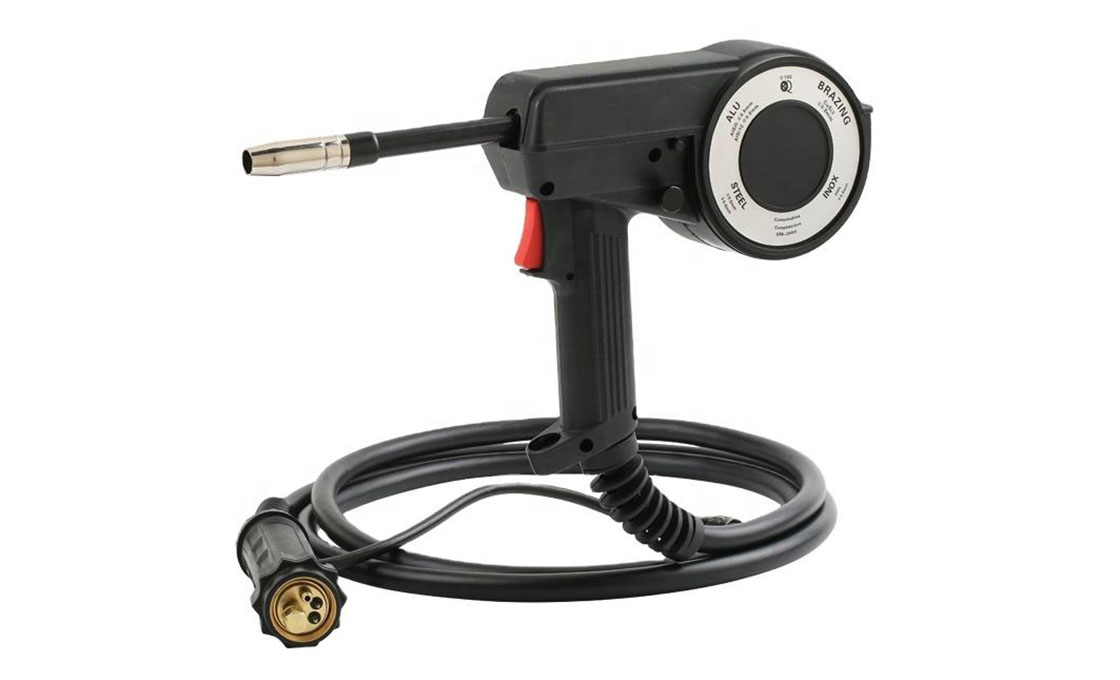

The design typically includes a clear plastic housing that offers full visibility of the internal wire spool and moving parts, allowing real-time monitoring of wire feed. Many models feature an ergonomic handle for user comfort and a cable assembly, with lengths commonly ranging from 10 to 20 feet, to provide extended reach and flexibility. Construction elements focus on durability, with components like a cross-linked polymer jacket on the cable for resistance to high heat and abrasion. Spool guns are generally air-cooled and built to withstand regular use in industrial or fabrication environments.
The integrated wire spool and feeder minimizes the distance wire must travel, maintaining consistent wire speed and smooth wire feed to eliminate feeding problems associated with soft aluminum wire. The clear housing enables visual confirmation of the feeding process. Spool guns are applied primarily in aluminum MIG welding scenarios, suitable for tasks ranging from light duty fabrication to more demanding industrial projects. Their compact and portable nature makes them fit for welding in confined spaces or on workpieces with complex structures.
Trusted OEM Exporter: RAX Industrial Spool Gun from a National Standard Setter
As a trusted OEM supplier and exporter, we understand how crucial it is to have top-quality tools for your operations. Hebei RAX Industrial Co., Ltd. is an integrated R&D and manufacturing hub, founded in 1999 with over 20 years of experience, committed to meeting industrial demands with tailored solutions. Our 50+ specialist engineers leverage high-precision automation in our 18,000 m² facility to develop premium welding equipment, ensuring every Spool Gun we produce delivers optimal performance and ease of use.
Our Industrial Spool Gun is designed to enhance your welding experience. By utilizing automatic wire feeding instead of a traditional hose, it controls the wire amount with uniformity. This cause-and-effect engineering, rooted in our decades of research and manufacturing experience, ensures that your operations are consistently efficient and reliable.
Bring professional-grade results to your welding projects with the RAX Industrial Spool Gun. Connect with us to discuss how our products can elevate your work standards.
| Parameter | Value |
|---|---|
| Cable Length | 10 to 20 ft |
| Housing Type | Clear plastic housing |
| Jacket Material | Cross-linked polymer |
| Cooling Method | Air-cooled |
| Carry Case Included | Yes |
| Ergonomic Handle | Yes |
| Rear Cable Support System | Yes |
| Performance Cable System | Yes |
| Rated Amperage | 220 A |
| Duty Cycle | 60% |
| Wire Size Range | .030″ to .045″ |
| Wire Spool Size | D100/4” |
| Motor Voltage | DC 24V |
| Connector Type | European connector |
| Consumable Style | Tweco-type |
| Compatible Nozzle Sizes | 22-5, 22-62 |
| Compatible Contact Tip Sizes | 14-23, 14-30, 14-35, 14-40, 14-45 |
| Machine Compatibility | MIG180, MTS200, RAZORWELD, YesWelder units |
| Warranty Period | 3 years |
| Customer Support Location | USA |
Frequently Asked Questions
What is a spool gun used for?
A spool gun is designed for MIG welding softer wires like aluminum. It helps eliminate feeding problems associated with soft aluminum wire by reducing the distance the wire needs to travel, ensuring consistent wire speed and reducing the risk of beading and bird-nesting. It is ideal for aluminum MIG welding and is built for mobility and shop use.
What types of wire can I weld with this spool gun?
This spool gun is suitable for welding softer wires such as aluminum. It typically accommodates aluminum wire sizes from .030 to .045 , including common sizes like .030 and .035 for MIG welding with solid wire.
Which welding machines is this spool gun compatible with?
The spool gun is designed to be compatible with a range of MIG welding machines. It can be used with models like MIG180, MTS200, MIG285, RAZORWELD MTS machines, IronMan™ 240, YesWelder MIG-270K, Weldmark MIG25-140, and others. For specific compatibility details, refer to product specifications or contact customer support.
What are the key features of this spool gun?
Key features include a clear housing for full visibility of the wire spool and internal movement, a long 20-foot cable for extended reach and flexibility, and a cross-linked polymer jacket for high heat and abrasion resistance.
The spool gun also features an ERGO style handle for comfort, a rear cable support system for smooth wire feeding, an air-cooled design, and includes a durable carry case for transport and storage.
What is the duty cycle and amperage rating?
This spool gun typically has a 60% duty cycle at its rated amperage. Amperage ratings can vary, with common capacities including 140 amps, 150 amps, 200 amps, or 220 amps, depending on the model. For exact specifications, check the product details.
What consumables does this spool gun use?
The spool gun uses Tweco-style consumables. This includes nozzles such as 22-5 and 22-62, and contact tips in sizes like 14-23, 14-30, 14-35, 14-40, and 14-45. Always use compatible consumables for optimal performance.
Do you offer OEM/ODM services, and how deep can the customization go?
RAX Industrial specializes in comprehensive OEM/ODM customization as an integrated R&D and manufacturing hub. Our services include private labeling, full aesthetics customization, and component modification to meet your specific application needs.
Our 50+ R&D specialists provide free industrial design and prototyping, leveraging an agile supply chain for rapid, market-ready development to enhance your product's competitiveness.
What is your typical lead time for bulk orders, and how do you ensure supply stability?
We maintain a reliable 15-day lead time for orders, supported by our robust 18,000 m² production facility and automated manufacturing capacity. Our integrated supply chain and annual output of over 270,000 welding torch sets ensure long-term supply stability and rapid inventory turnover for our distribution and OEM partners.
What certifications and quality controls do you have to ensure product compliance and durability?
Our products and processes are certified to ISO 9001:2015, CE, RoHS, and SGS standards. We enforce rigorous quality control through our dedicated QC lab, which employs OES material analysis and hardness/image measurement. This commitment to authority and precision ensures our spool guns meet international regulatory and safety standards for demanding industrial applications.
What kind of technical and after-sales support can we expect for your welding equipment?
We provide dedicated 24/7 technical support with a 12-hour response commitment. Our after-sales service includes a 12-month warranty on products.
Our team, backed by 20+ years of experience and membership in the China Welding Association, offers expert assistance for process optimization, maintenance, and troubleshooting to maximize your equipment uptime.
