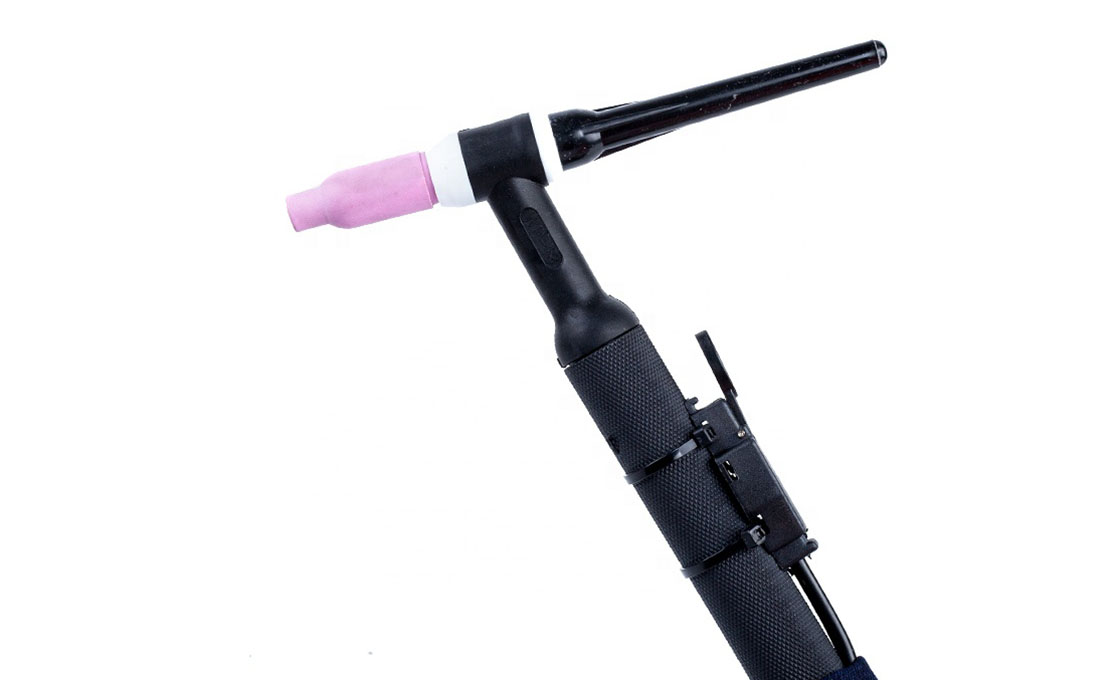

The water-cooled TIG (Tungsten Inert Gas) torch uses a water circulation system to manage heat during high-amperage welding, enabling extended continuous operation. The cooling mechanism reduces heat buildup in the torch body, supporting consistent performance and lessening thermal stress on the welding machine. Models typically offer 100% duty cycle ratings, allowing prolonged use without mandatory cooling breaks.
This torch handles professional applications in fabrication shops and production lines, particularly for long-run operations on steel, stainless steel, and aluminum at amperages exceeding 200 amps. Performance specifications range from 250 to 410 amps DC across various models, with corresponding AC ratings. The torch accommodates electrode diameters from 1.0 mm to 4.8 mm and maintains cooler handle temperatures under high current settings compared to air-cooled alternatives.
Design features include slim, ergonomic handles for reduced operator fatigue and flexible silicone cables with hosepacks for maneuverability. Many models incorporate flexible neck designs for improved access to confined spaces. Color-coded water and gas hoses simplify setup and identification.
The torch connects to standard TIG welding machines through industry-standard fittings such as Dinse connectors, gas quick-connectors, and multi-pin plugs. A separate water cooler unit circulates chilled fluid through the system. Complete packages typically include the torch body with integrated cables, water and argon gas hoses, and appropriate connectors for power source and cooler integration.
Precision & Performance from Your Trusted TIG Torch Supplier
Founded in 1999 with over 20 years of dedicated innovation, we’ve consistently advanced TIG Welding equipment technology. Experience unparalleled performance with our Water-cooled TIG Torch, designed for durability and efficiency in high-heat applications, ensuring optimal cooling and extended usage. Crafted from high-quality materials with an ergonomic design for precision and control, this torch guarantees reliability and professional-grade craftsmanship.
Our company, as an integrated R&D and manufacturing hub, directs the expertise of 50+ specialists and 20+ R&D engineers toward perfecting every component. This commitment to innovation and quality, supported by advanced automation in our 18,000 m² facility, ensures every weld is seamless and consistent.
Whether you’re in automotive, aerospace, or manufacturing, our torch is your go-to solution for superior performance. Experience the difference with RAX Industrial’s Water-cooled TIG Torch today!
| Parameter | Specification |
|---|---|
| General | |
| Type | TIG Welding Torch |
| Cooling System | Water-Cooled |
| Primary Application | High-amperage, extended-duration welding on steel, stainless steel, and aluminum. |
| Performance Ratings | |
| Rated Current (DC) @ 100% Duty Cycle | 410 A |
| Rated Current (AC) @ 100% Duty Cycle | 290 A |
| Physical & Design | |
| Head Style | Ergonomic / Flexible, Adjustable Neck |
| Handle Design | Slim, ergonomic, non-slip grip |
| Body Construction | Compact, lightweight with durable insulation |
| Hose/Cable | Heavy-duty, flexible silicone cables and hoses |
| Compatibility & Connections | |
| Termination Style | Dinse connectors, Gas Quick-Connector, Water Quick-Connector, Multi-pin Connector |
| Machine Compatibility | Standard TIG welding machines |
| Operational Specifications | |
| Duty Cycle | 100% |
| Min-Max Electrode Diameter | 1.0 – 4.8 mm (0.04″ – 3/16″) |
| Hose Length Options | Available in standard lengths (e.g., 12 ft / 25 ft) |
| Cooling System Detail | Large-volume water jacket; color-coded water and gas hoses for easy setup |
Frequently Asked Questions
What are the advantages of water-cooled TIG torches over air-cooled models?
Water-cooled TIG torches provide superior heat dissipation through a circulating coolant system, enabling higher amperage welding (typically 200-300+ amps) and extended continuous operation without overheating. The cooling system results in a more compact, ergonomic torch head that enhances operator comfort and reduces fatigue during prolonged use. This allows welders to work longer under high current settings, complete work more efficiently, and reduce wear on equipment by preventing premature overheating.
What applications and environments are best suited for water-cooled TIG torches?
These torches are optimized for high-amperage projects, long-duration weld beads, and stationary setups such as workshops or fabrication shops. They are particularly effective in professional environments where maintaining consistent heat management is crucial for precision work on demanding materials and thick sections. Due to the external cooling system requirements, they are generally used in fixed locations rather than portable field applications.
What equipment and setup are required to operate a water-cooled TIG torch?
A water-cooled TIG torch requires an external cooling system with a water reservoir and pump to circulate coolant through the torch. Compatible water coolers (such as the PrimeWeld MaxCool3000) chill and circulate coolant to maintain optimal operating temperatures. The CK20 package includes the Water-Cooled Flex Head TIG Torch, Superflex water cooler hoses and connections, Superflex Argon hose and connector, and a 3-piece SuperFlex Cable available in 12' or 25' lengths.
Can you provide OEM/ODM customization to match our machine's design and branding?
Yes, RAX Industrial specializes in deep OEM and ODM customization, offering:
- Private labeling and logo integration
- Aesthetic customization to match your machine's design language
- Component modification for seamless integration
- Free industrial design and prototyping based on your specific application
Our agile supply chain enables rapid development, backed by 20+ years of experience and an 18,000 m² manufacturing facility.
What are your lead times, pricing structures, and technical documentation for B2B partners?
We maintain a standard 15-day lead time for orders through our efficient supply chain. Wholesale and distributor partners benefit from competitive, tiered pricing structures designed to support high profit margins and rapid inventory turnover. We provide comprehensive technical documentation including detailed data sheets (TDS), performance test reports, and complete product manuals to support engineering specifications. All products are certified to ISO 9001:2015, CE, and RoHS standards, ensuring compliance and operational safety.
